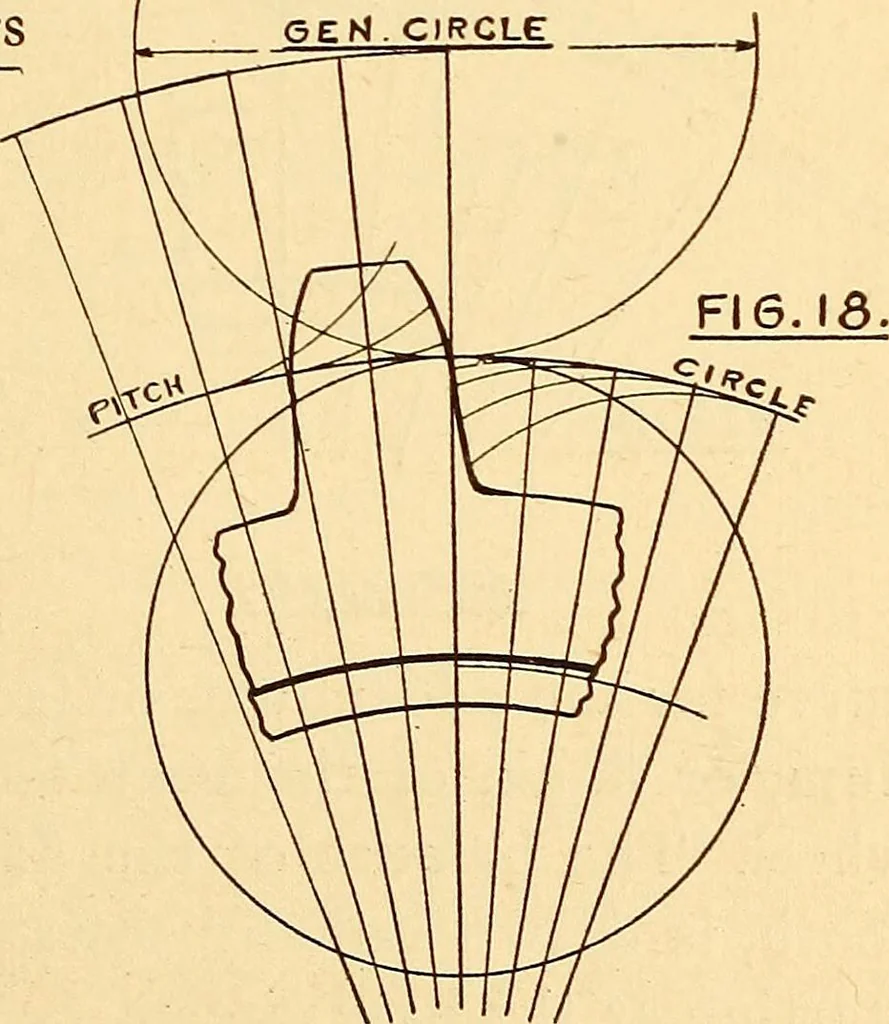

of which equals IXC.P. In first-class finished gears, the thickness of the tooth C.P. and space, each equal .5XC.P. or —~ The center to center distance between shafts =Sum of the pitch diameters TOOTH CURVES Two general systemsare used for finding theproper curves for theshaping of the… … 48 Power Transmission pitch circles with a trace point, which describes twocurves for each wheel, an Epicycloid Curve for the face,and a Hypocycloid Curve for the flank. The diameter of the generating circle is found by takingone-half the diameter of a 12-tooth pinion and of thepitch being used…
