Naval architecture: a manual on laying-off iron, steel, and composite vessels (1898)
Watson, Thomas Henry · London; New York: Longmans, Green and co., [etc.] · leaf 210

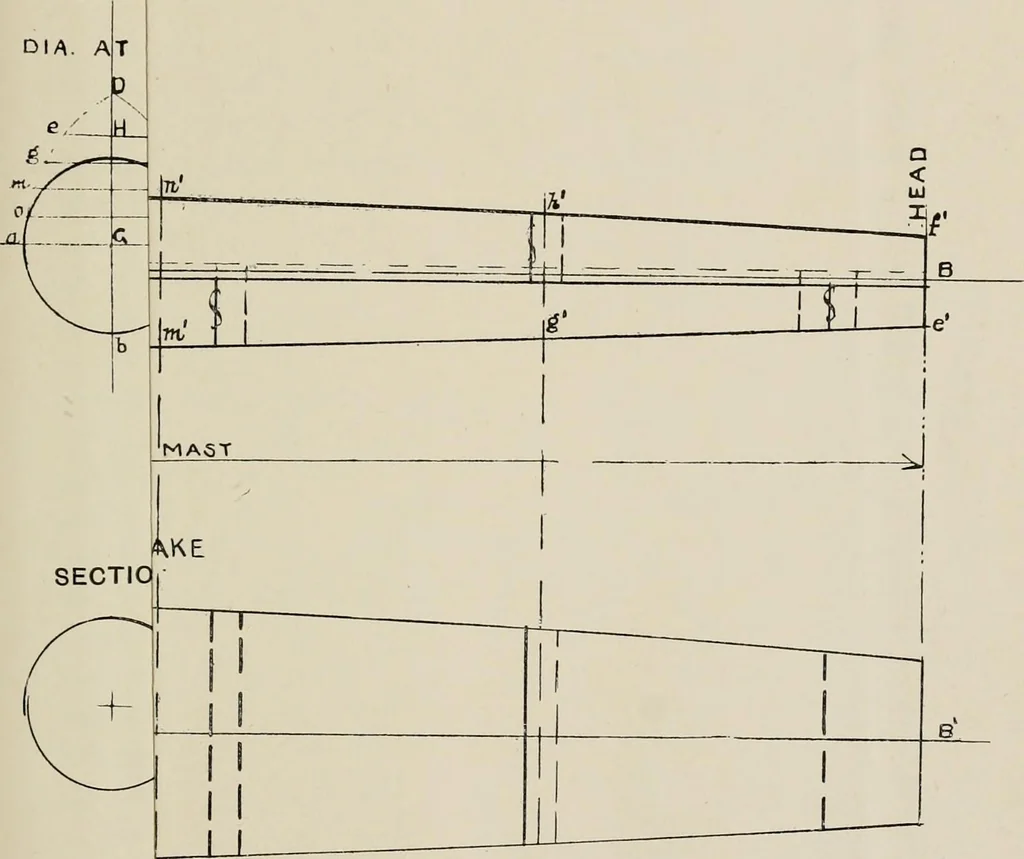

ne may be easily foundby trying a few sections. Fig. 84 shows a bulb plate beam which is turned down bodily, anda piece welded in the top corner. Draw in the centre line a b. Girththis line, and set the distance, b a1, out straight. Then c d is theallowance for each side. The end allowance may be… … Fig. 86.
