Measurement of vessels for the Panama canal (1913)
Johnson, Emory R. (Emory Richard), 1864-1950, United States. War Dept · Washington, Govt. Print. Off. · leaf 27

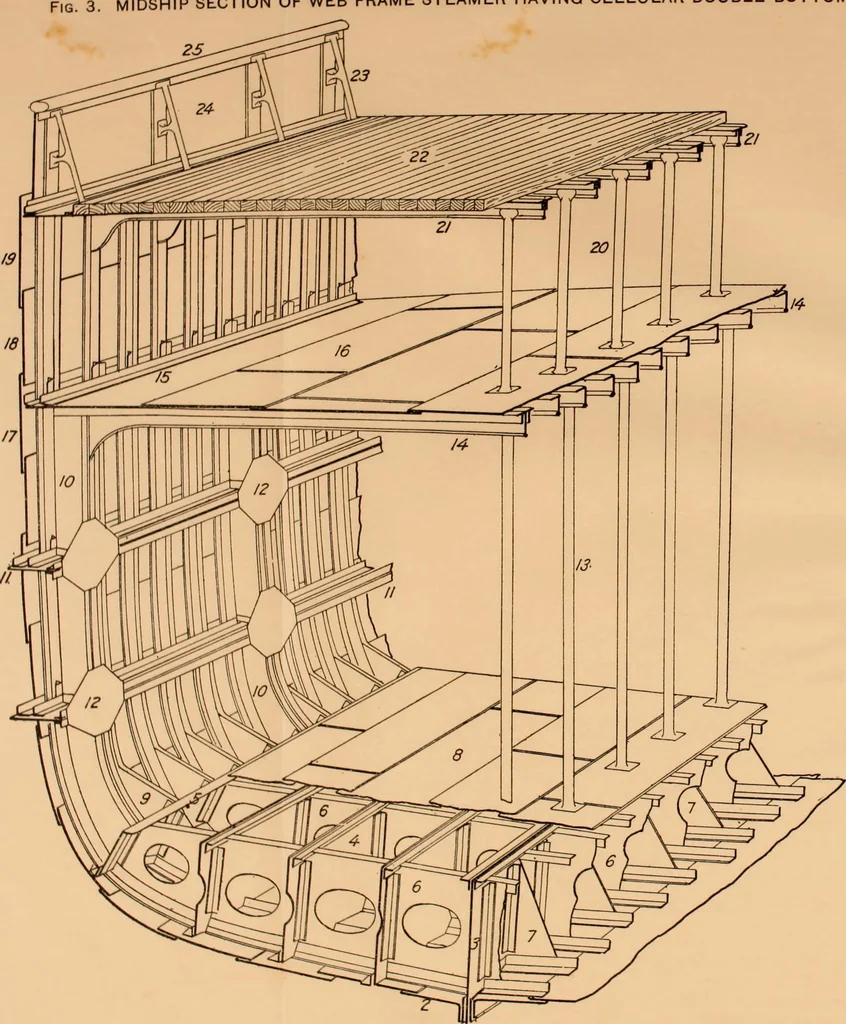

rder; Margin plate. 6 Floors; Intercostal floors. 7 Brackets. 8 Inner bottom; Top of double bottom; Top of tank. 9 Bracket frames. 10 Web frames. 11 Side stringers 12 Diamond pistes 13 Hold.pillars, Hold stanchions.14- Main deck beams. 15 Main deck stringer. 16 -Main deck plating 17 Main deck… … r.iMU -is. it., taw page it.i MEASUREMENT OF VESSELS FOR PANAMA CANAL. 17 tudinal wing girder at the upward bend of the frames, are crossed at right angles by the longi-tudinal side girders that parallel the keelson. The floors may be continuous from keelsonto margin plate and the side girders…
