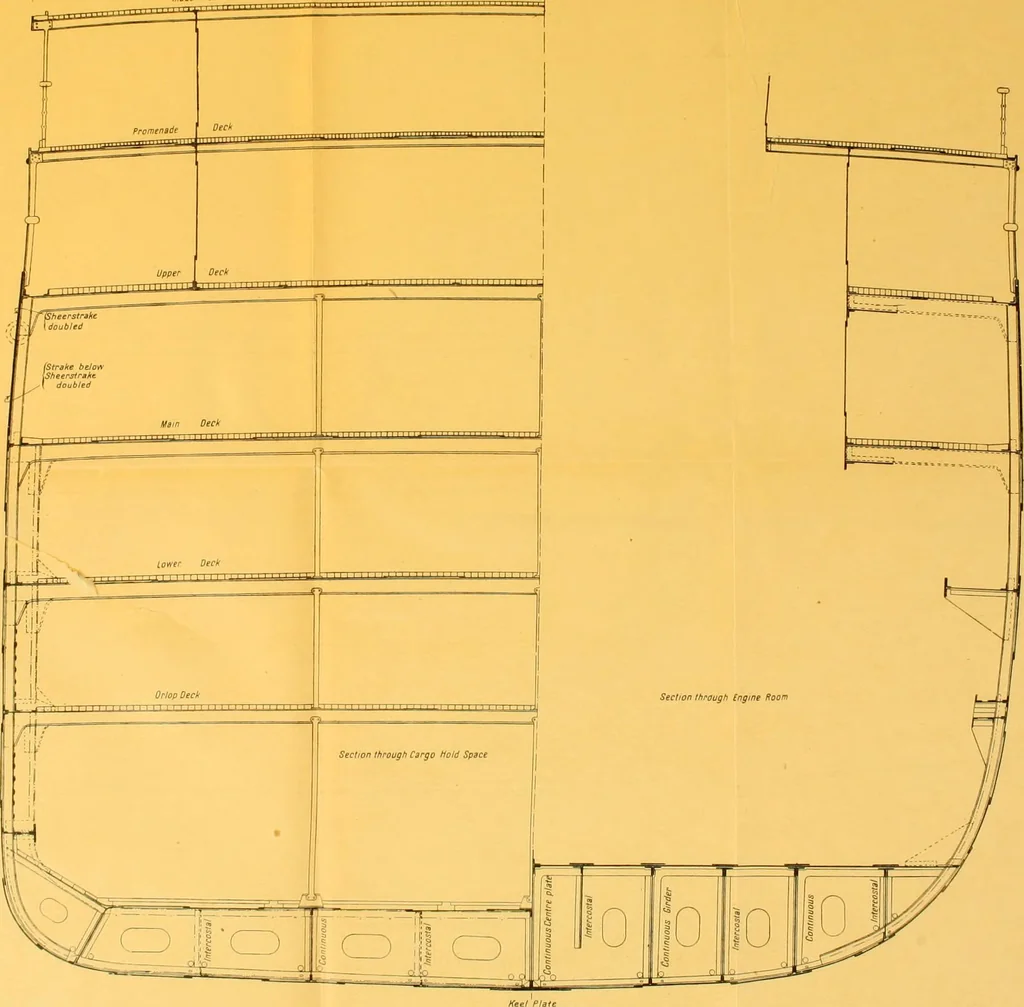

n depth, and additional longitudinal girders were introduced. The section through the engine space (fig. 58) well illustrates this.In order that the various parts might be connected in the most efficientmanner, all rivet holes in the structure under the engines were rimed andmade perfectly true,… … TYPES OF VESSELS—SECTION II. 135 As the orlop beams had necessarily to be dispensed with in themachinery space, compensation was provided by a semi-box stringer(see section, fig. 58), which is itself furthermore strengthened by theintroduction of diaphragm plates at intervals. The stringer plates…
