Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries (1910)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The N. W. Henley publishing company · leaf 167

An illustration from Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries, 1910, leaf 167

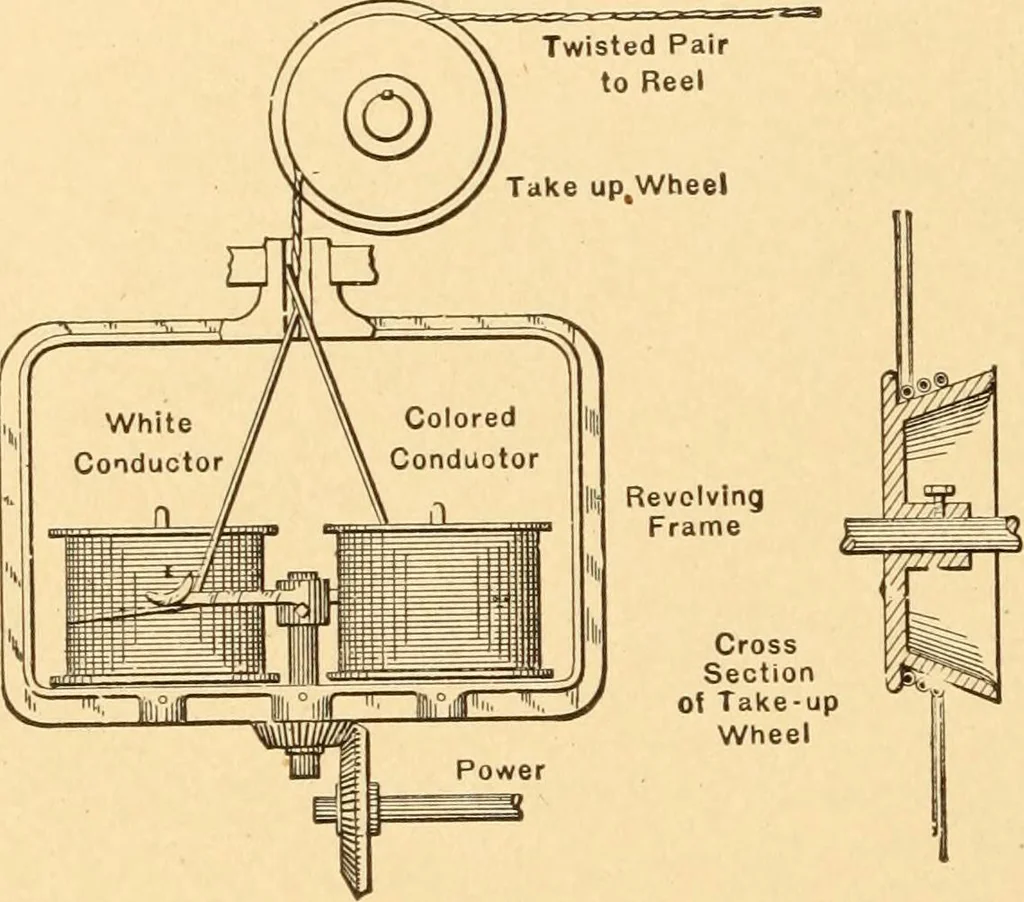

395. ELECTRIC WIREDOUBLING DEVICE. The previously covered wires,one white and one coloredred to distinguish them inwiring, are wound togetherand drawn over the conicaltake-up wheel, as shown inthe right-hand section, withseveral friction turns to regu-late the twist rate. Take-up Wheel Bobbin 396.…

Mechanical movements
