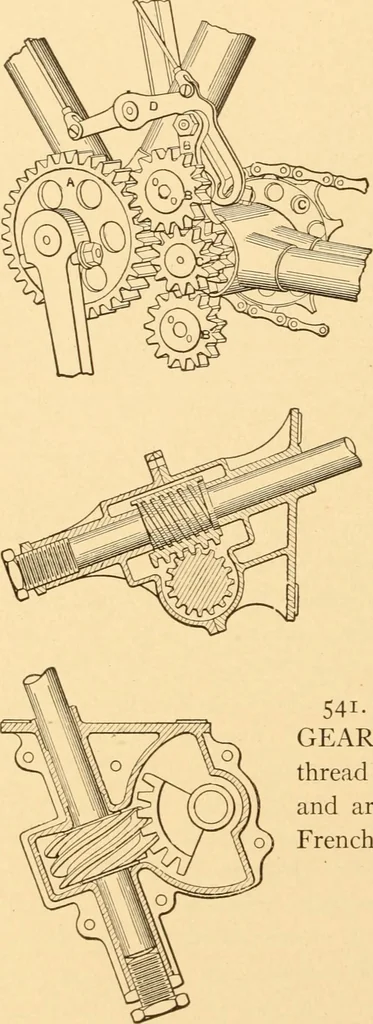

i andB2. By the action of the lever D, Biand Ci, or B2 and C2 are thrown intogear with A, thus giving a gear whichcan be varied in a great range of ratio. 540. AUTOMOBILE STEER-ING GEAR. The steering shafthas a double thread screw and nutwith rack attached, w^hich turns apinion to operate a shaft… … ROAD AND VEHICLE DEVICES, ETC. 213
