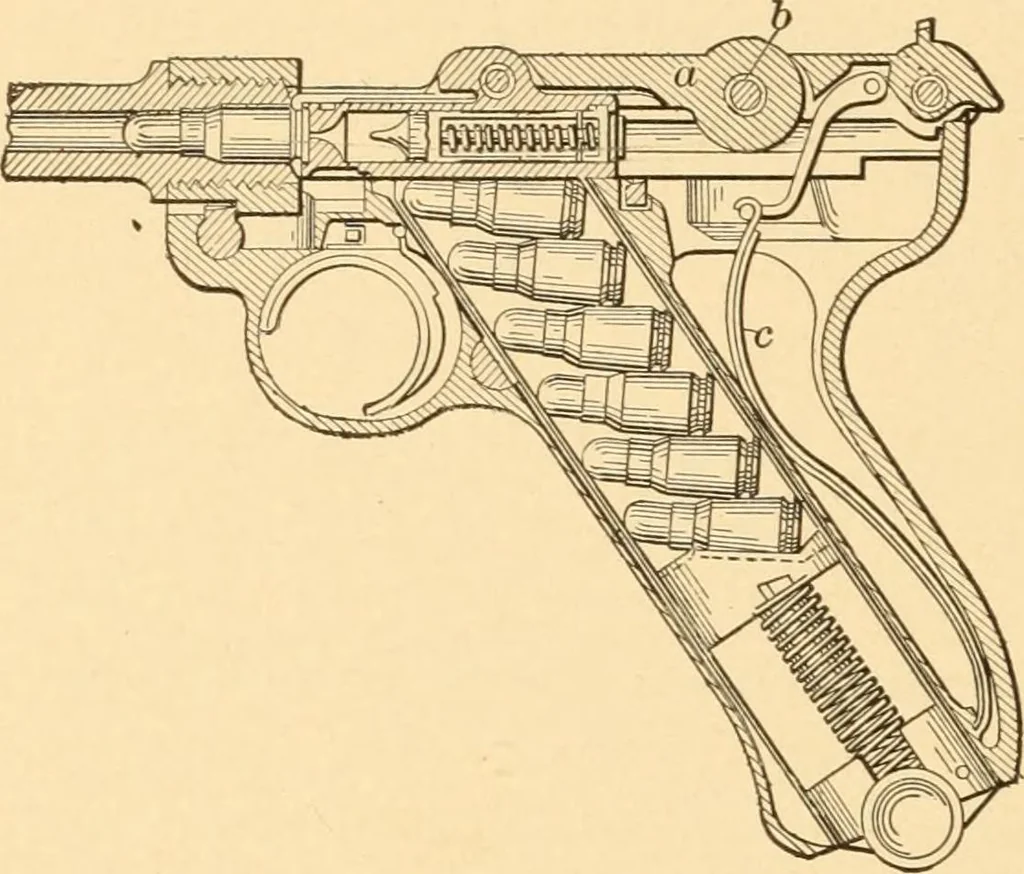

899. Shows the breech blockswung clear from the chamberand a section of the screw withinthe chamber. 900. The breech blockin front of the chamberready to be pushed inand revolved to a lockposition by a furthermovement of the leverhandle. 352 MISCELLANEOUS DEVICES. … 901. MAGAZINE PISTOL. Luger type. Pressure on a pin atthe butt of the barrel pushes to the rear the barrel and the breech block, which slides along grooves inthe framework. During thismovement, the movable breechand the barrel slide as onepiece. The breech, however,continues to move by its…
