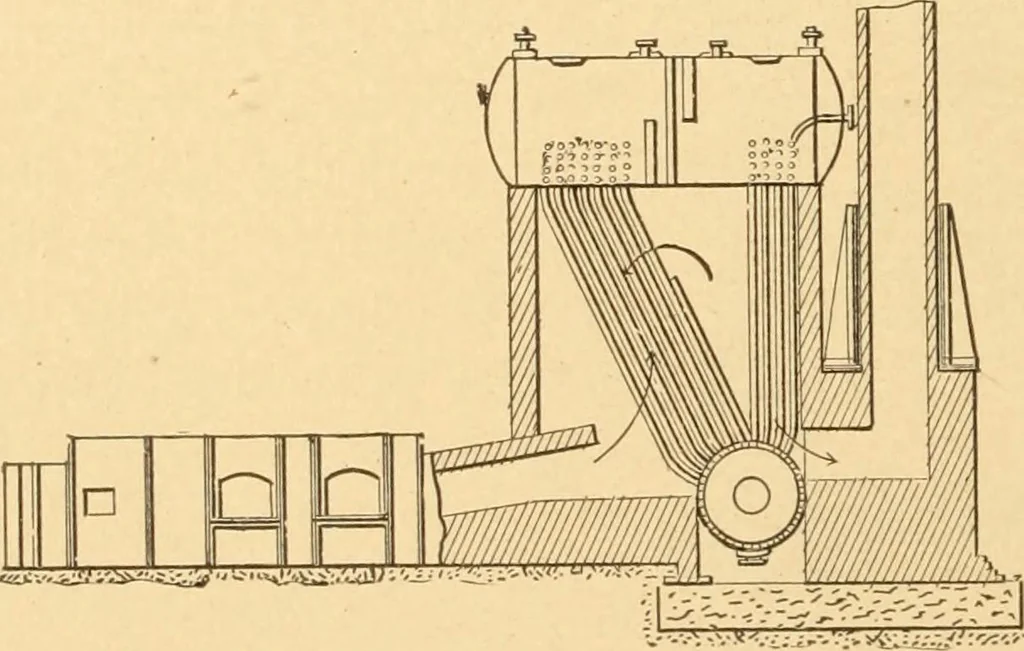

steam space. Gases of combustion pass under lower shells throughthe tubes and back between the three shells. Water line in uppershell. Large efficiency claimed.78. Section through boiler. 79- WATER TUBE BOILER. … Arranged for utiHzing the heatfrom a puddling furnace.A most efficient econ-omizer of heat from anykind of furnace fromwhich there is sufficientwaste heat for generatingsteam. A diaphragmguides the heat to bestadvantage through thetwo sets of upright tubes. GENERATION OF POWER, STEAM. 55
