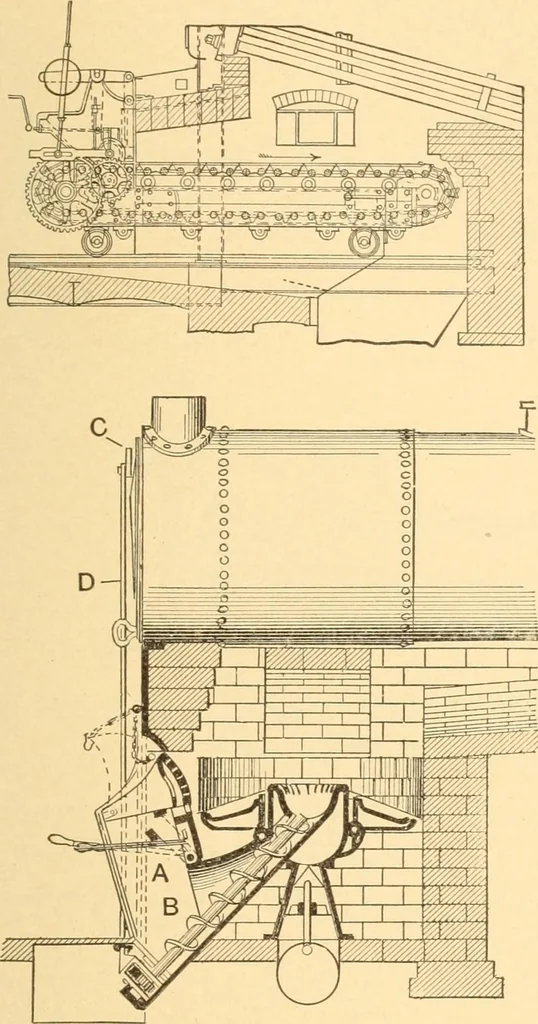

-boxboiler. For bituminous coal the in-clination of the grate made to suit thesHding properties of the coal. Thefeed hopper extends clear across thegrate width. The coal feeds down byrate of combustion, which in turn isregulated by the amount of draft ad-mitted. The new coal is heated bythe burning… … 92. TRAVELING LINKGRATE. The link-bar grateis fed forward by a geared drumcarrying the coal fed from ahopper and coked under thefore arch of the furnace. Mo-tion of grate and amount of coalregulated by speed of gear andopening of the hopper, slidingdoor, and grate guard. 93. UNDER FEEDFURNACE. A…
