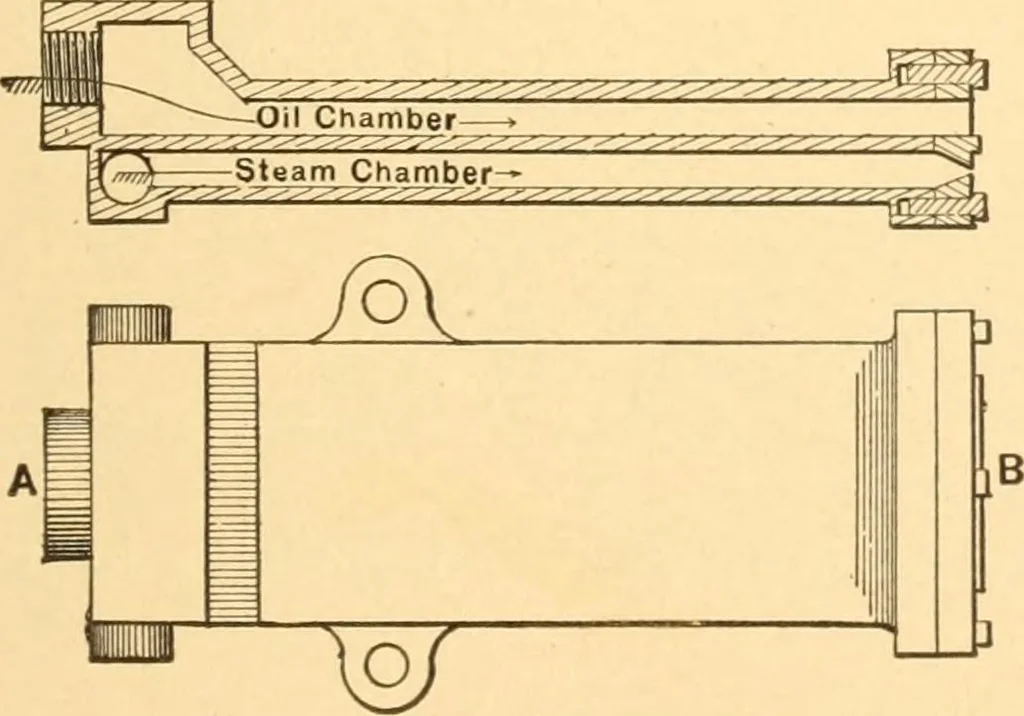

^7Z^ The fixed pipe, a, is provided at the side with two apertures in front ofwhich the two conduits, c and d, coincide when the apparatus is inoperation. At a stoppage, a rotary motion is given the system andthe apertures of the pipe, d, are closed by the sides of the movablejacket. The conduit,… … Plan and section of the crude oilburner used on theSouthern Cali-fornia Railroad.This burner hasbut two chambers, oil andsteam; the air enters the fur-nace through graduated open-ings around the burner. 103. Mouth of burner. 104. Plan of burner. 62 GENERATION OF POWER, STEAM.
