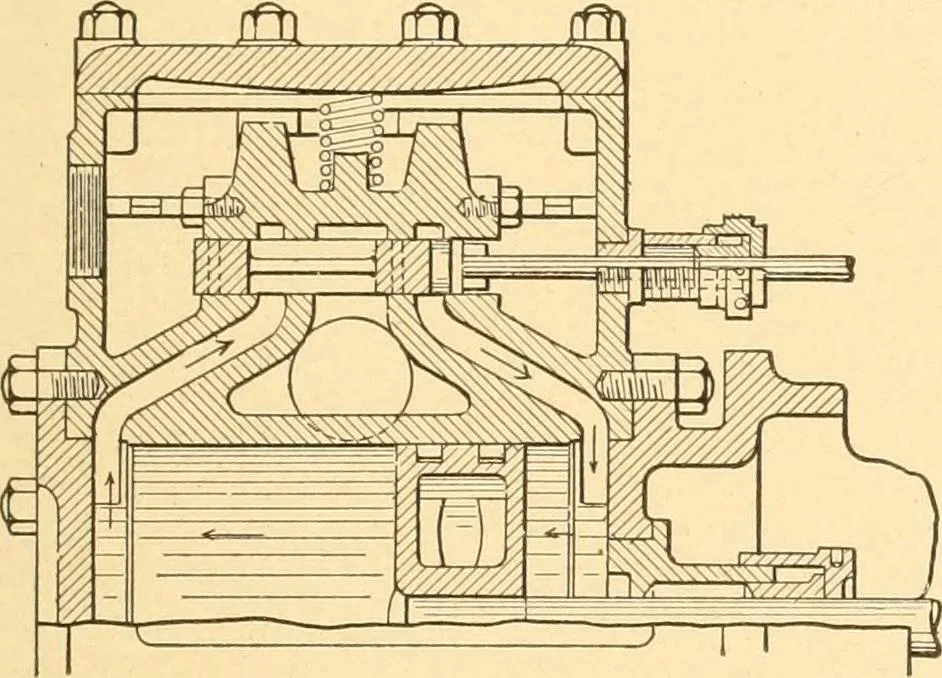

176. RIDING CUT-OFFVALVE. From single eccen-tric. The main valve is movedby the direct connected valverod. The riding valve is movedby a short lever and links piv-oted to the two valves. … 177. TYPES OF SLIDEVALVES. Slide valve of theBayley engine. A flat valve ridingunder a balanced pressure plate.Pressure plate is held in place bystays against the steam chest. 178. PARSONS STEAM TURBINE. Steam is admitted at thegovernor valve and arrives at the chamber, A, at the small end of the
