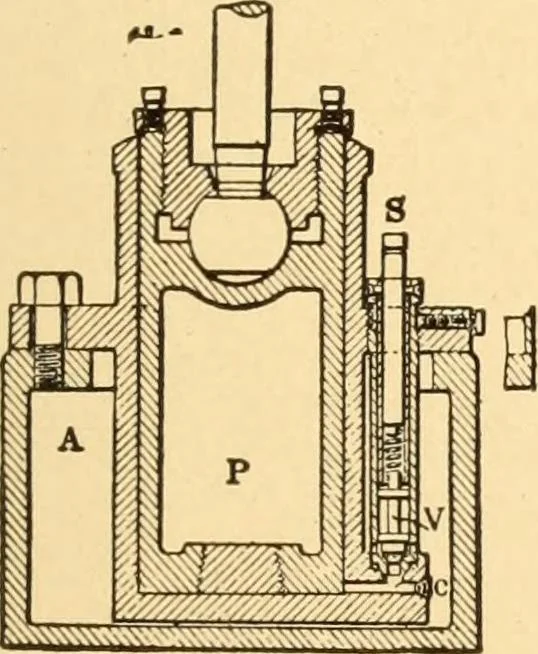

lunger cylinder from the annular chamber. A, throughthe check valve C. The air is not sufficient,however, to prevent the formation of a partialvacuum which draws the plunger quickly down-ward when the valve spindle is released. As theplunger nears the bottom of the cylinder it iscushioned by the… … 196. REVERSING GEAR. Wolf type. E, is the eccentric; B, eccentric strap and arm ;/, a pin sliding in the link,S, which is moved to the
