An illustration from Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries, 1914, leaf 159

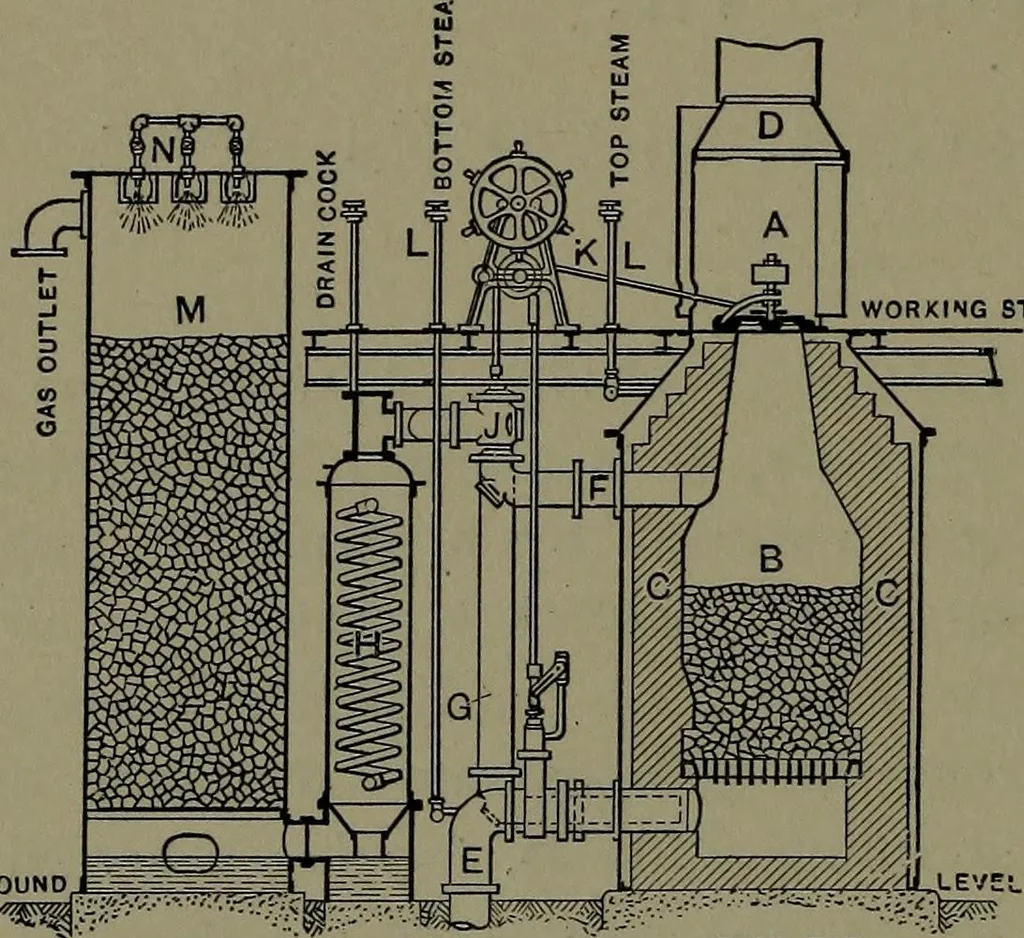

of the generator.F and G, gas blow-off pipe,interchangeable to reversethe gas blow. J, valvethat automatically closeswhen A is opened. L, L,steam pipes for alternatingthe steam blow. H, super-heating coil for heating thesteam by the hot gasespassing to the scrubber M.N, sprinkler. K, wheel and drum… … SUPERHEATER GENERATOR colo water ;Akhot water
