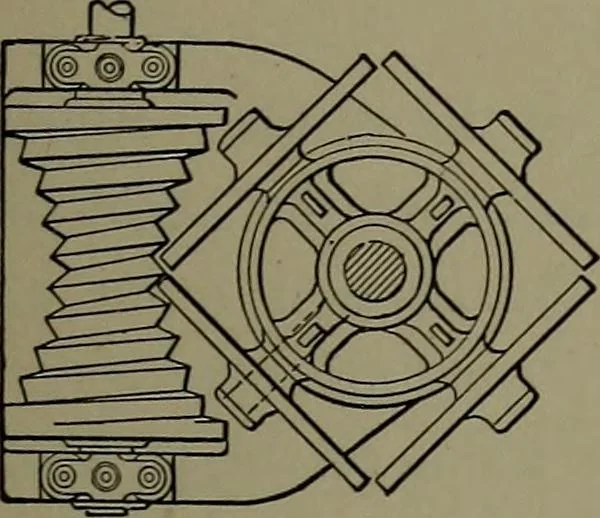

SECTION XIV. GEARING AND GEARMOTION, ETC. 231 SECTION XIV. GEARING AND GEAR MOTION, ETC. … 600. NOVEL WORM GEAR. The threads of a spiral worm,instead of gearing into teeth Hke those of an ordinary worm wheel, actu-ate a series of rollers turning upon studs, whichstuds are attached to a wheel whose axis is notparallel to that of the worm, but placed at rightangles thereto. When motion is…
