Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 100

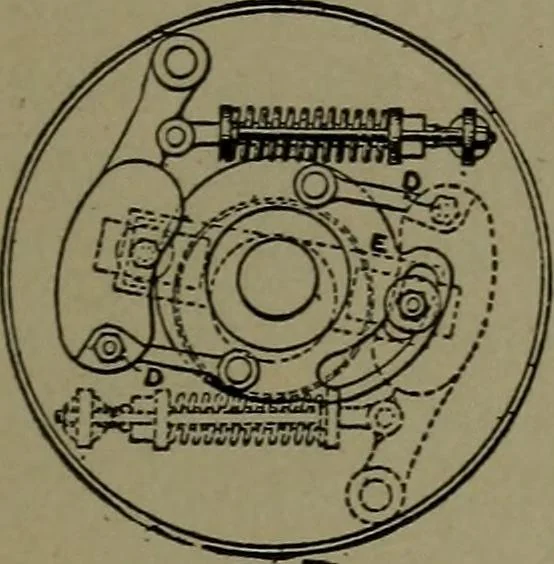

318. CRANK-SHAFT GOVERNOR.—The cen-trifugal action of two hinged weights, balanced bysprings, varies the eccentric by moving It towardthe centre by excess of speed. Eccentric is hingedto an arm of the pulley or fly wheel. … 319. FLY-WHEEL OR PULLEY GOVERNOR.—The centrifugal force of two pivotedweights connected to a spiral-slotted face plate,in which a wrist pin on the arm of the eccentricsets it for^vard or back; controlled by the adjust-ment of the holding springs.
Mechanical movements
