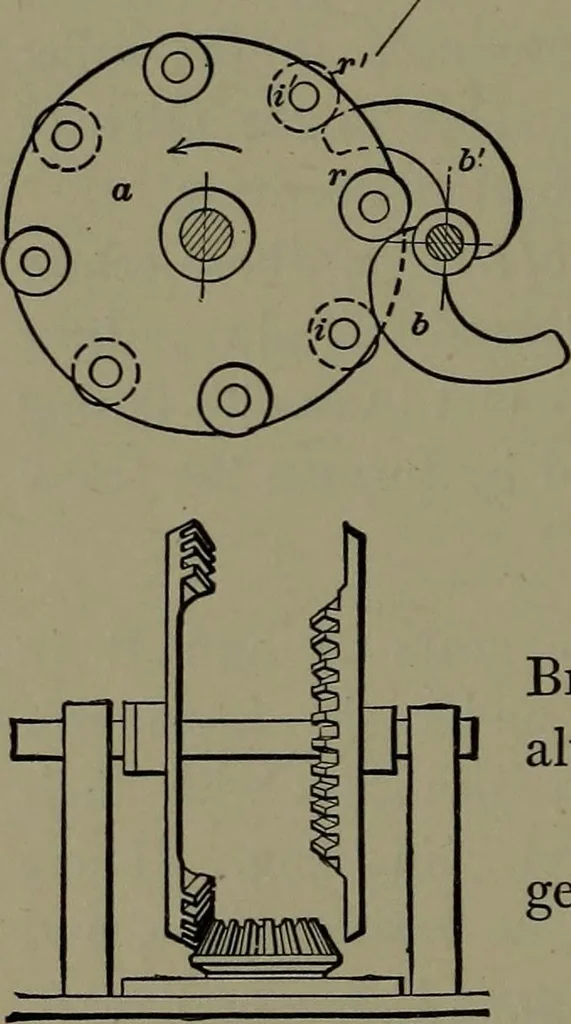

. 605. GEARED REVERSING MOTION. Broken sections of teeth on a pair of bevel gearsalternately reverse the motion of a bevel pinion. Guide fingers are necessary in this class ofgearing for insuring the meshing of the teeth. 606. ELLIPTIC LINKAGE from circular gears. Three equalgears D, G, C, with the…
