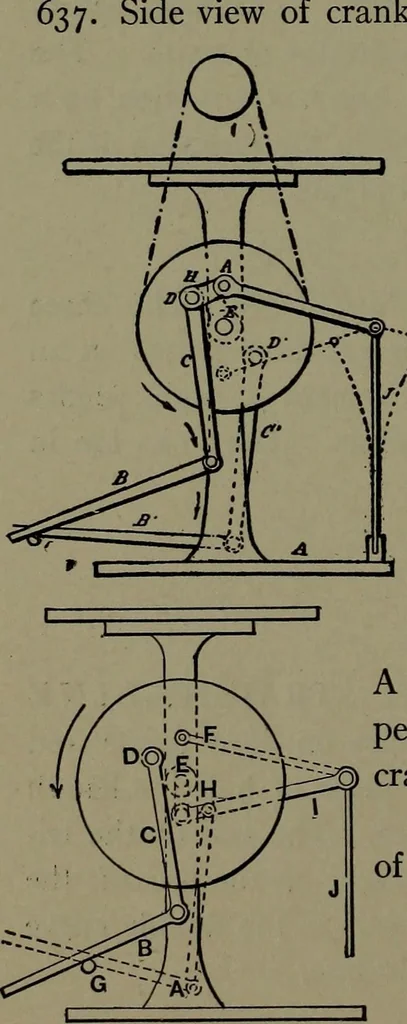

Side view of cranks and treadle connections. … 638. THE DEAD CENTER PROB-LEM. The crank pin is held off the cen-ter by the spring J, the tension of whichalways pushes the crank pin off the center.Shows the action of a single treadle iny the two extreme positions. 639. THE DEAD CENTER PROBLEM. A supplementary crank set at an angle with thepedal…
