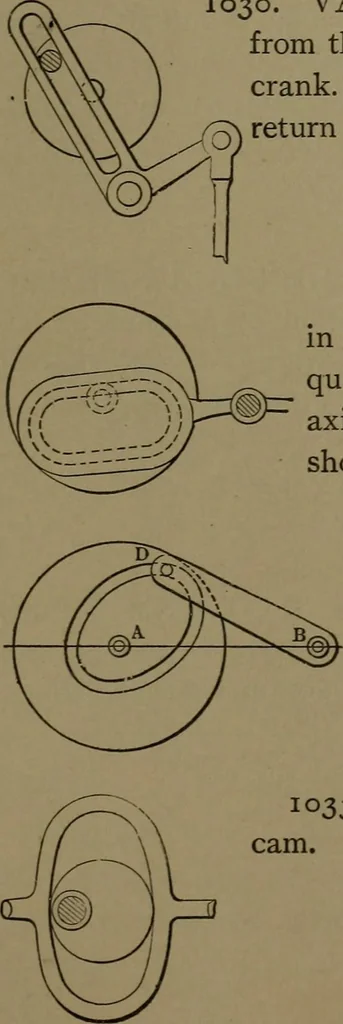

1029. STOP MOTION from a wrist or crankpin. The relative amount of stop and motiondepends upon the diameter of crank-pin circleand length of the connecting-rod slot, plus thediameter of crank pin. Used in brick machines. 1030. VARIABLE RECIPROCATING MOTIONfrom the circular motion of a wrist pin on…
