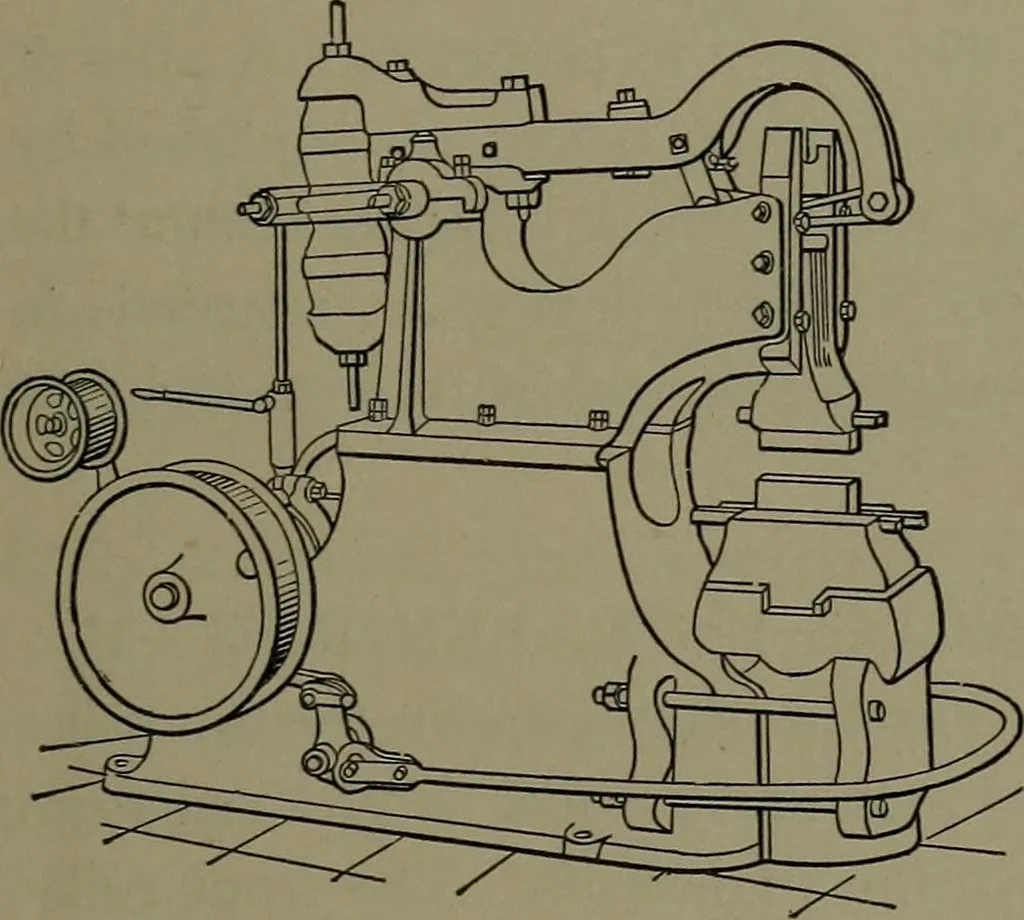

MILL AND FACTORY APPLIANCES AND TOOLS, ETC. 293 The hammer handle is connected to a foot lever, Q, by a cord, S ; acoiled spring is fitted, to be contracted when the hammer is forced down,for raising the hammer again. The spring bears against the head of theshaft, C, and the rod connects with the… … 764. BELT-DRIVEN FORG-ING HAMMER. Bradley type.The hammer in guides is oper--ated by an elastic strap attachedto the yoke of a helve vibratedby elastic cushions and an armwith adjustable connecting rodto an eccentric on the belt shaft. The treadle controls the blowof the hammer by a frictionbrake.
