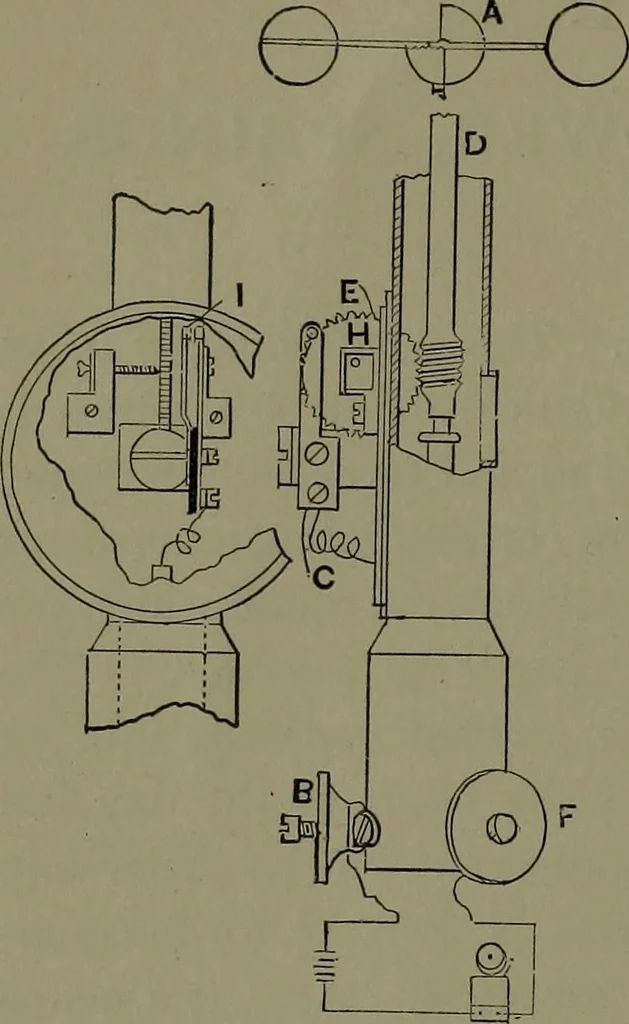

39. ANEMOMETER. Robinsontype. For measuring the velocity ofthe wind. The worm screw runs inone of a train of geared index wheelscarrying pointers. The dials are markedfor direct reading of from o.i mile, imile, 10 miles, 100 miles, 1,000 miles;so that the difference of two readingsand the time… … 40. ELECTRIC SIGNAL ANEMOMETER. Consists of fourhollow hemispheres or cups fixed to the ends of two horizontal rods Acrossing each other at right angles and supported on a vertical shaft D whose worm thread is geared into thewheel H, On the face of wheel H arebeveled projecting pins E which…
