The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 423

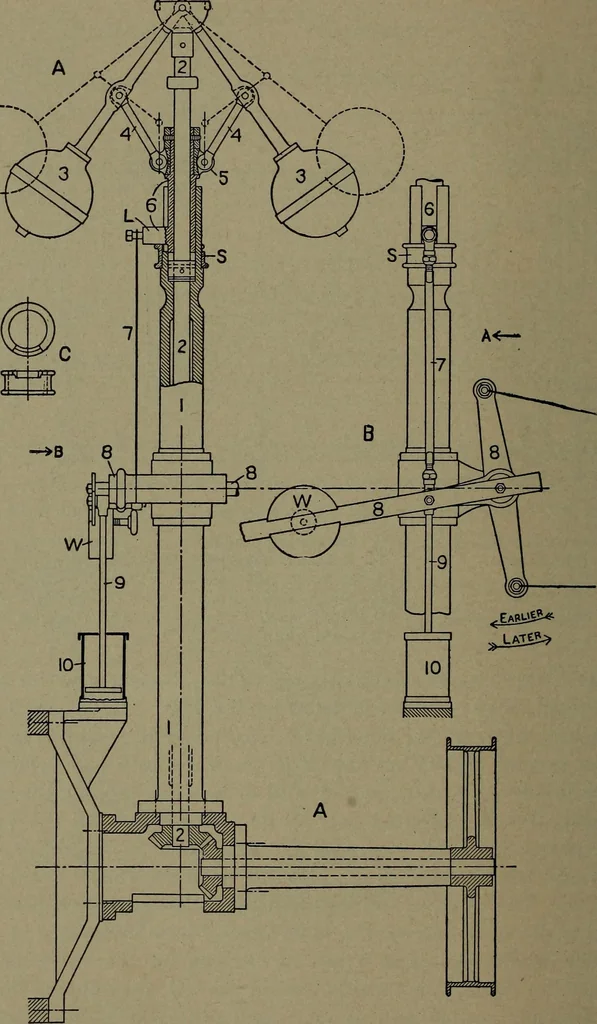

ward the left, the valve is closed fromthe previous cut-off, and at rest; as 6 nears the limit of travel, thelatch L slides over the catch pin P, going just a little way past the en-gaging point. As the crank is pulled toward the right it turns thevalve stem with it, until the trip arm T strikes… … 1. Governor standard. 2. Governor spindle. 3. Weight arms. Fig. 268. — The Governor. 4. Lifting links. 5. Lifting ring. 6. Lifting sleeve. 7. Lifting rod. 8. Governor rocker. 9. Dashpot rod.10. Dashpot. § 43 (c)] THE CORLISS VALVE GEAR. 407 It will be noted that all the hooking and tripping…
Steam-engines · Steam-turbines
