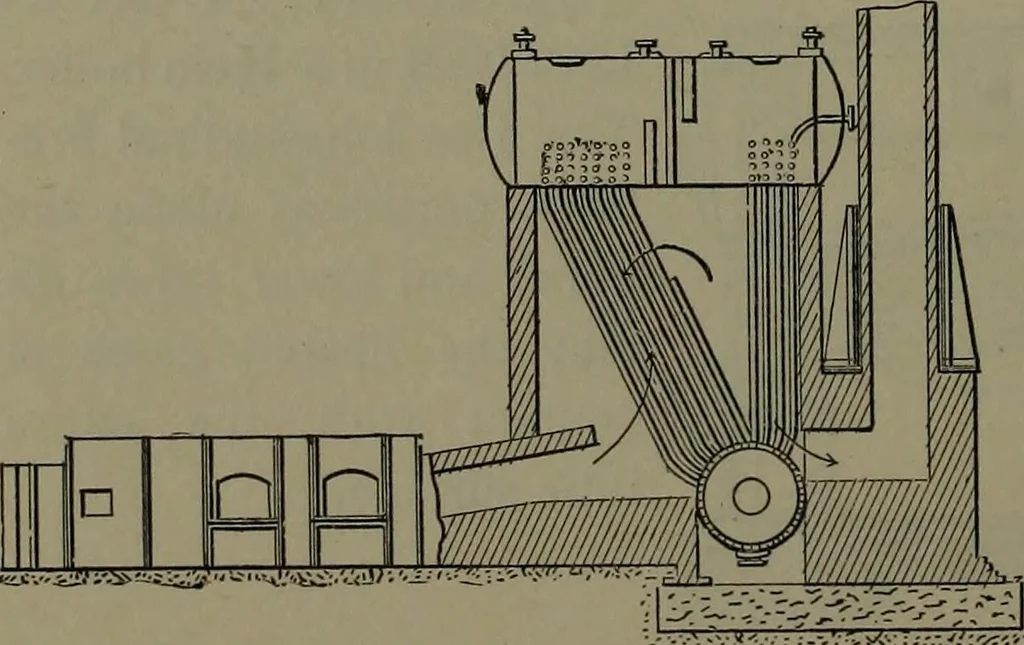

steam space. Gases of combustion pass under lower shells throughthe tubes and back between the three shells. Water hne in uppershell. Large efficiency claimed.78. Section through boiler. 79. WATER TUBE BOILER. … Arranged for utilizing the heatfrom a puddling furnace.A most efficient econ-omizer of heat from anykind of furnace fromwhich there is sufficientwaste heat for generatingsteam. A diaphragmguides the heat to bestadvantage through thetwo sets of upright tubes. GENERATION OF POWER, STEAM. 55
