Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 161

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 161

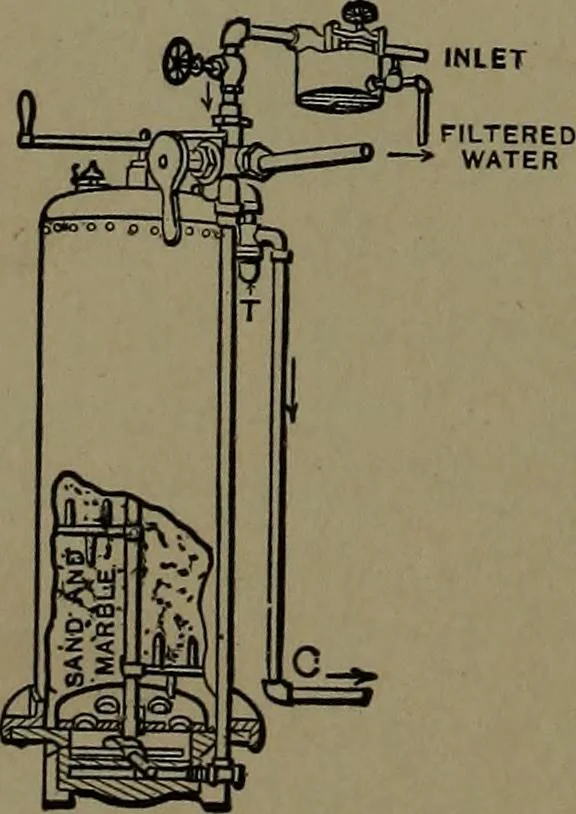

573. WATER PURIFYING FILTER, N. Y. Filter Mfg. Co. pattern. A diaphragmnear the bottom holds the gravel and sandfiltering material. There is a shaft through themiddle of the tank, with arms for stirring thesand while cleaning by a back-waterflow. Thewater is fed at the top with a small portion…
