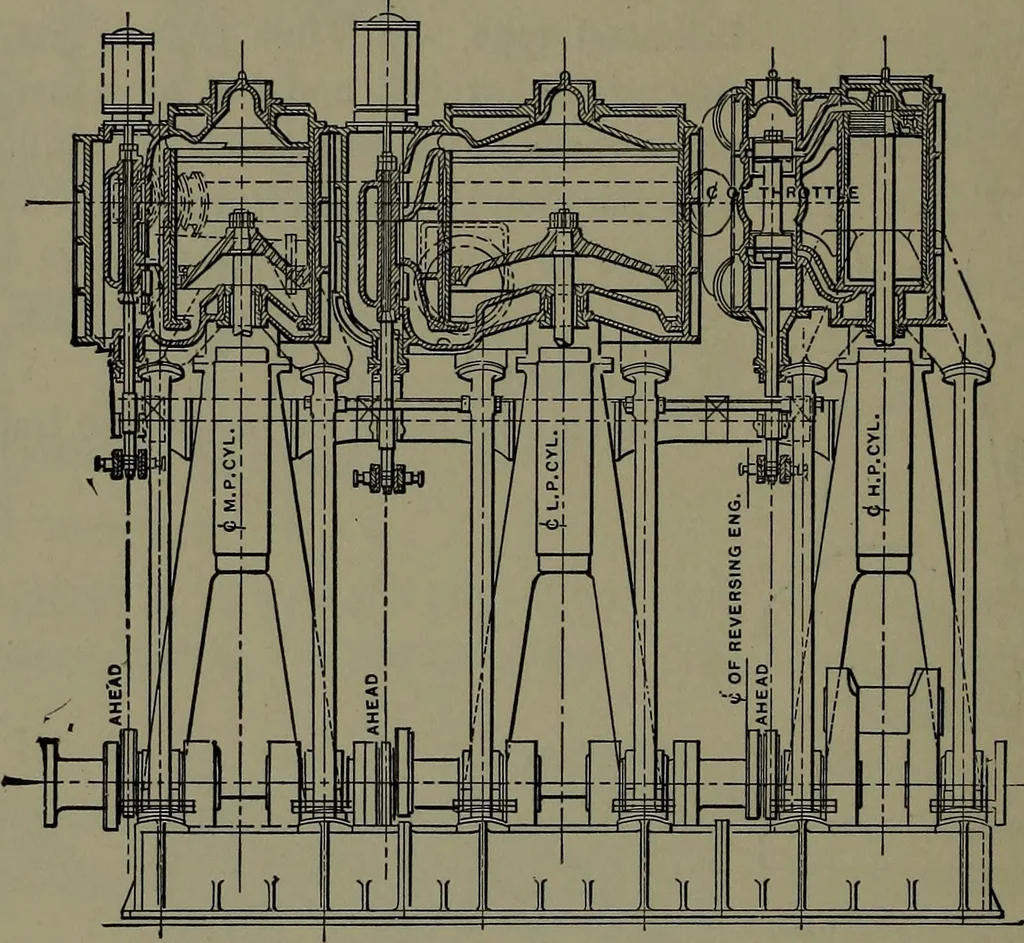

76 STEAM POWER APPLIANCES. 149. TRIPLE EXPANSION MARINE ENGINE. Type ofsteamer Minnesota. Proportion of cylinders, i, 5, 15 in area; stroke. … 48 inches; crank positions, 120°; high-pressure cylinder, 23 inchesdiameter; intermediate cylinder, 51 inches diameter; low-pressurecyHnder, 89 inches diameter. 150. COMPOUND CORLISS ENGINE. Atlas type, withdirect connected exhaust valves for both high- and low-pressure
