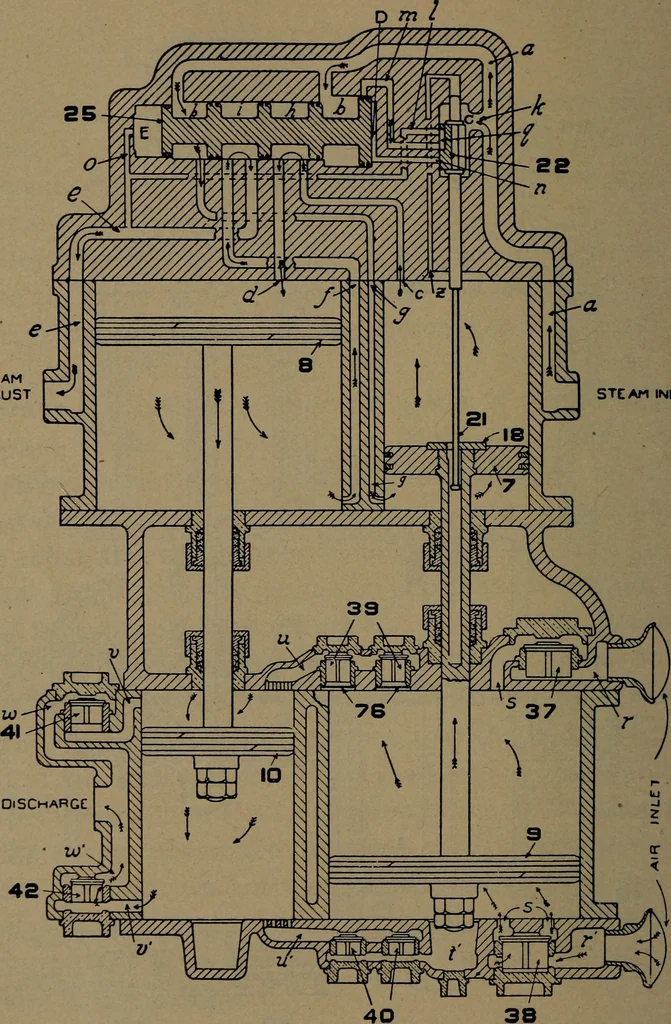

40 38 Fig. 40.—8J-Inch Cross Compound Compressor, Up Stroke. 166 CROSS COMPOUND COMPRESSOR STEAM fSS) air discharge STEAM INLET … Fig. 41.—8J-Inch Cross Compound Compressor, Down Stroke. CROSS COMPOUND COMPRESSOR 167 the end of reversing rod 2*1, pulling it down, moving revers-ing valve 22 to its lower position, closing the port leadingto passage n, shutting off the supply of live steam, and con-necting passage my cavity q,…
