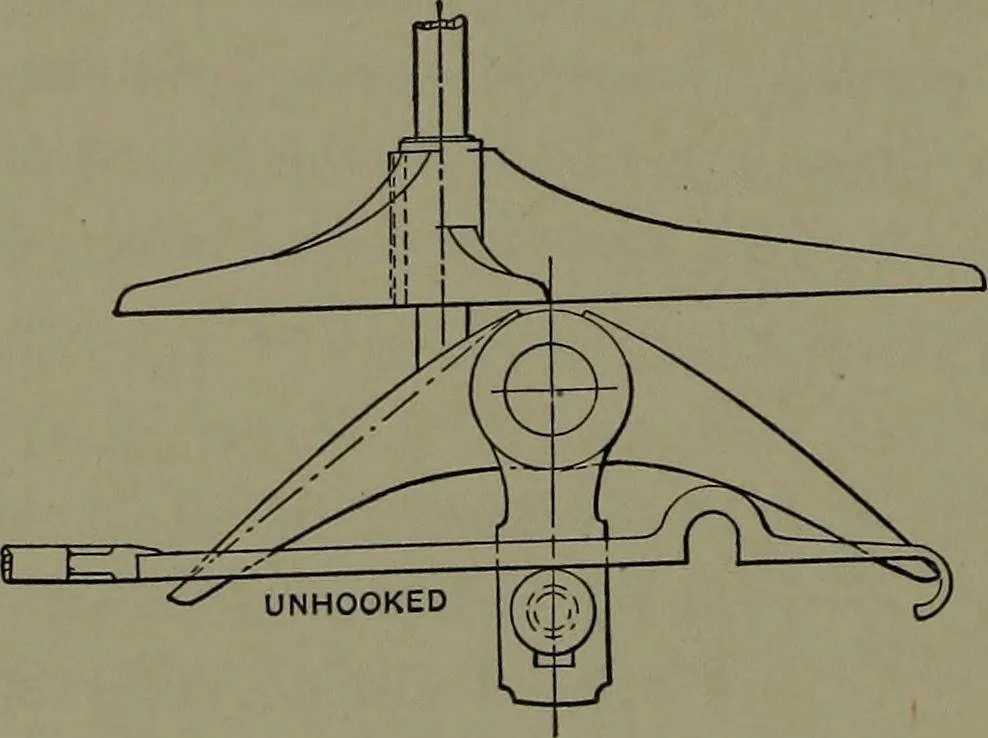

283. Plan showing spring shaft, bearings, lubricating channels and 88 STEAM rOWER APPLIANCES. Steam ducts. Runs by the impact of steam from live nozzles against theouter edge of the buckets of the wheel. The long shaft is to take upthe unbalanced vibration of the disk. … 184. THE STEVENSVALVE GEAR. Showingthe double toe and wipers wdththe eccentric rod unhooked.Type used on the Hudson Riversteamers. First used in 1840.A standard type for marine walk-ing-beam engines.
