Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley Publishing · leaf 99

An illustration from Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries, 1914, leaf 99

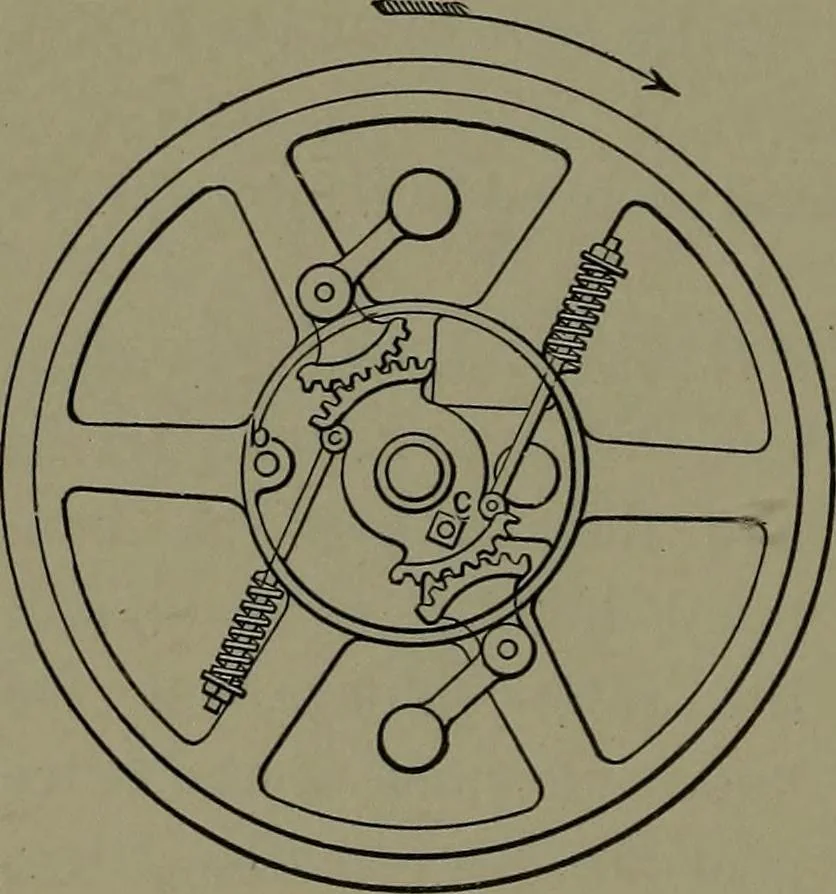

for stopping or reversing en-gines. A slotted sleeve slidingon the shaft with wedge-shapedwings that pass through cor-responding slots in the eccen-tric, move the eccentric to thecenter and reverse by the longi-tudinal movement of the sleeveand wings. The yoke lever andslotted collar control the… … 214. SECTOR GEAR GOV-ERNOR. Two balls on bell-cranksectors with their teeth meshing in acentral double sector, to which is at-tached the compression springs, whichare adjusted to the proper set of theeccentric, h and c are the pivot con-nections with the eccentric. 215. DASHPOT GOVERNOR. The…

Mechanical movements
