Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices"; (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing company · leaf 113

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 113

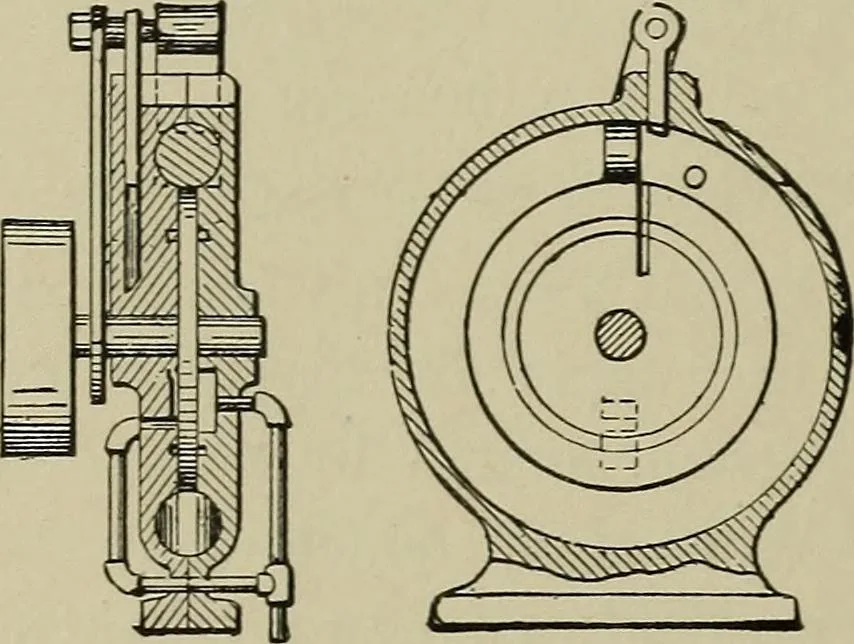

io8 STEAM POWER APPLIANCES. … 258. ROTARY PISTON ENGINE. Has a casing or frame inwhich is an annular groove or cylinder. In this groove is fitted a pis-ton which is carried by the piston diskas shown. A sliding abutment israised and lowered by means of a camon the engine shaft and a cam rod.The revolving shaft and cam causesthe…

Mechanical movements
