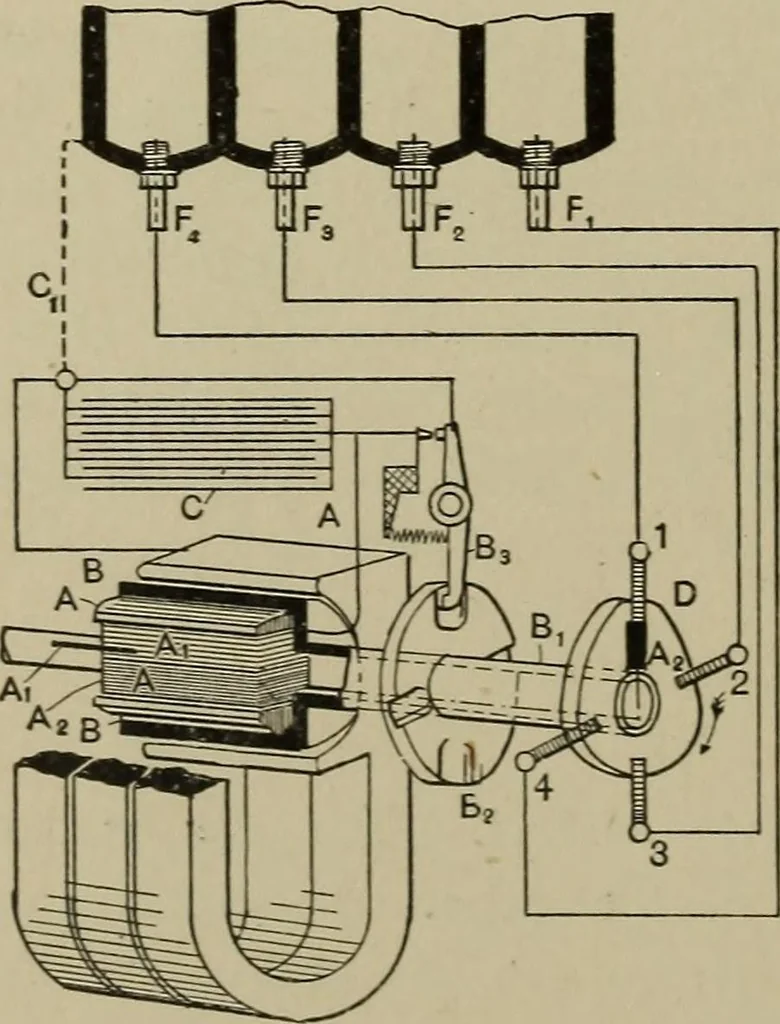

magnetism in the arma-ture core, which give rise to thecurrent, are produced by the rota-tion of a soft iron sleeve, B, whichpartially surrounds it, and is integralwith the hollow shaft, B1, whichalso carries the notched disk, Ba,and the high-tension distributingdisk D. One end of the winding,A1,… … EXPLOSIVE MOTOR POWER AND APPLIANCES. II9 one terminal of the condenser, the other terminal of the condenser andthe moving arm of the contact-breaker, B3, being grounded. Thesleeve, B, is slotted, and when the slots come opposite the poles of thefield magnet, the armature receives magnetism from…
