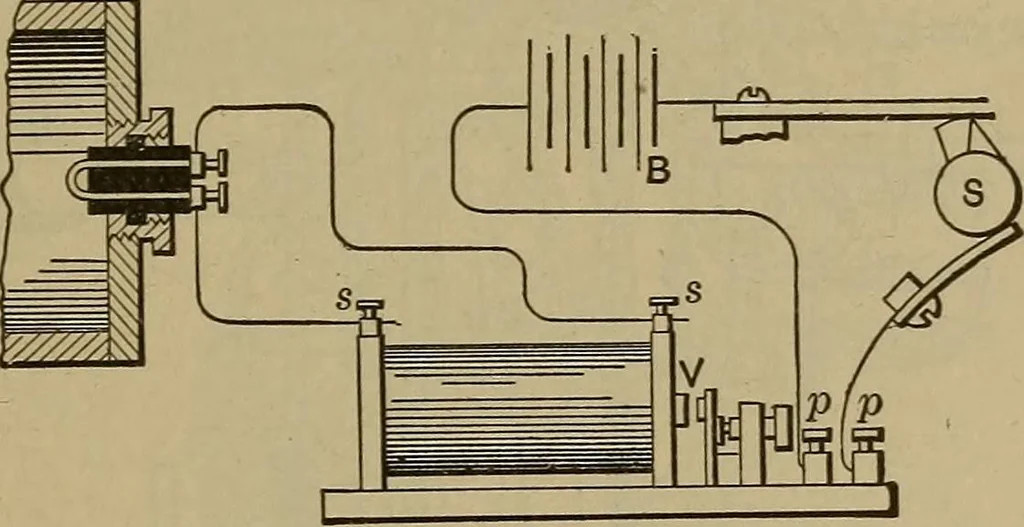

anged to be worked by a suitable cam rod attached to theouter crank d. The terminal, e, is stationary and insulatedfrom the cylinder-wall. The two terminals may be mounted § 46o/ HOT-AIR AND GAS ENGINES. 705 in a removable plug P„ The extremities of the terminalsshould be of some metal, as… … Fig. 316.—Jump-spark Ignition. by Fig. 316. Both igniter terminals are stationary andmounted in a plug of insulating material, usually porcelain orlava. These are connected to the secondary terminals, s, s>of an induction-coil. The primary circuit of this coil is con-nected to a battery, B, at…
