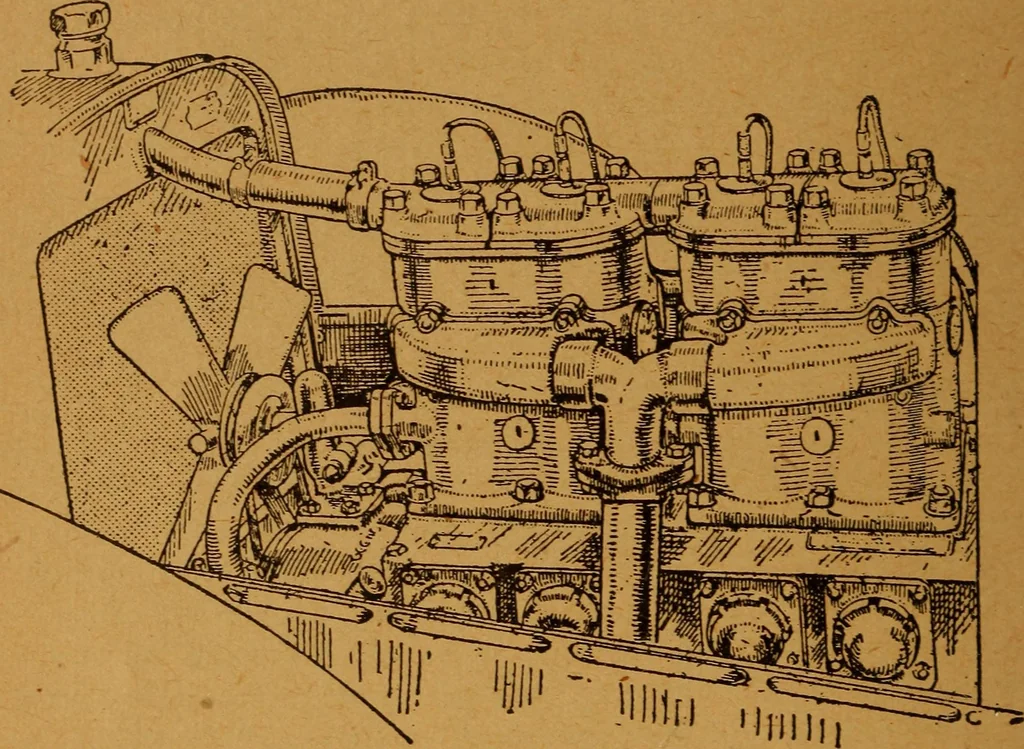

on shown, in theexhaust stroke (beginning of stroke), the sleeve port has juststarted on its downward stroke, moving also a trifle to theright as it progresses. Its progress to the right may be moreclearly seen by consulting diagram 2, for the movement. By consulting the other five figures it will… … Fig. 35. Elevation of Argyll Single Sleeve Motor from The Motor, London. tical path. In diagram 6 the exhaust is closed, and the inletport has just begun to open, the dotted port now starting tomove out to the left, and to rise. In diagram 10, the inlet is nearly closed, the sleeve port pass-ing…
