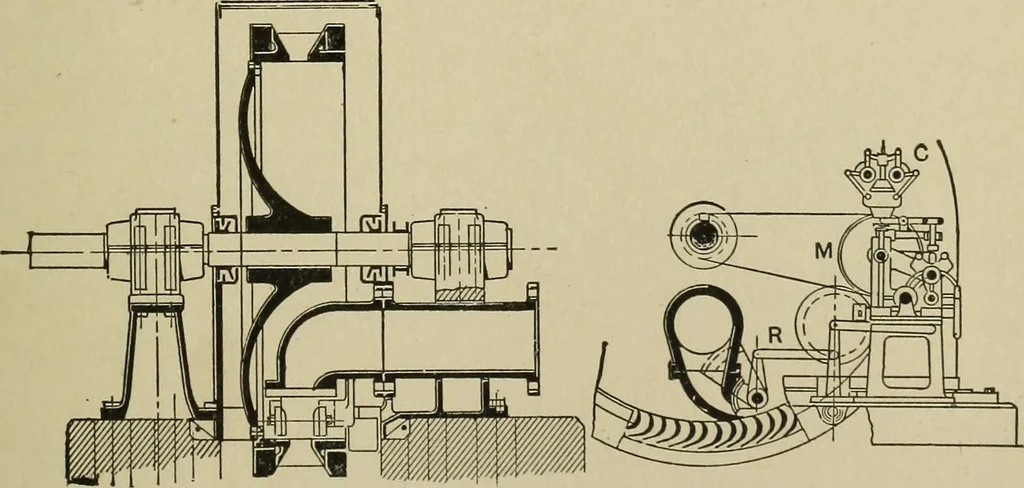

hinged to chains runningover sprocket wheels and guided in groovesin the sides of a casing. By the use of alarge number of inclosed buckets closelyfitted, an efficiency of 90 per cent isclaimed. This claim is doubted in consid-eration of the friction of the many bucketsin the tube, their loose… … to match the buckets. The water flow is governed by the opening orclosing of a sector slide valve controlled by a fly governor.300. Elevation, showing position of nozzle and buckets. 128 HYDRAULIC POWER AND APPLIANCES.
