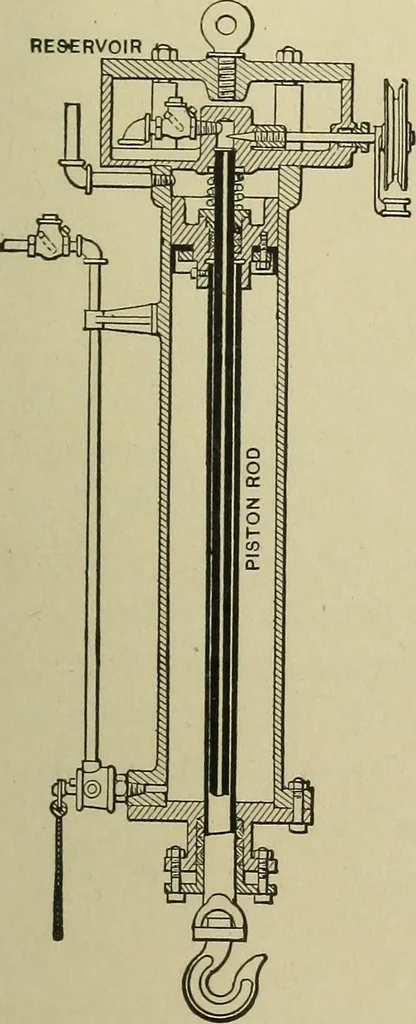

AIR-POWER MOTORS AND APPLIANCES. 151 tions to suit different products. H, part of the outer shell removed toshow the cells in which the grain is carried up and poured out in a con-tinual stream; the number and pitch of these cells is also varied forvarious products. RESERVOIR … 371. PNEUMATIC LIFT. Ridgwaytype, oil governed. A tube extends from areservoir down the inside of the hollow pistonrod. The reservoir is filled with oil. Whenthe hook is lowered, the oil is drawn into thepiston rod through the check valve. Thechain wheel and needle valve govern the flowof oil,…
