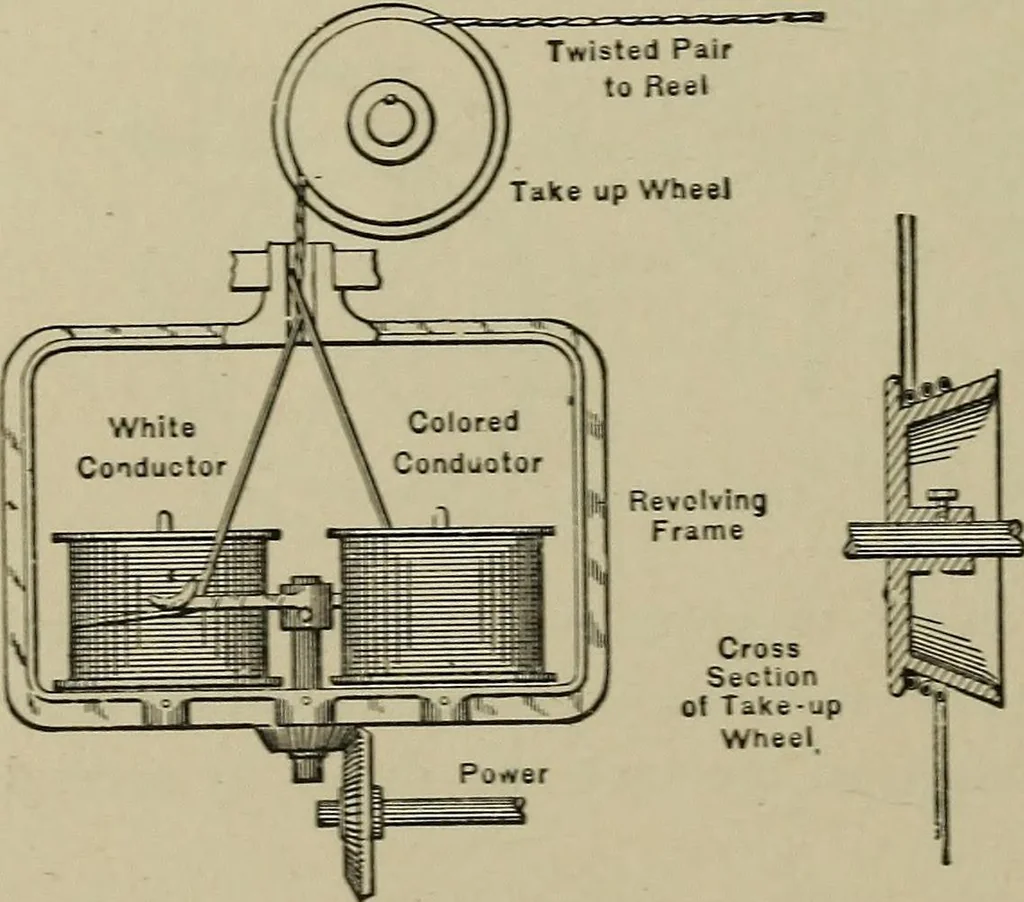

and colored cottonwound right hand. Thetwo pairs of spools andframes revolve in op-posite directions that thewrappings may crosseach other. The take-up wheel regulates thetraverse of the wirethrough the machine. Insulated Wire i … 395. ELECTRIC WIREDOUBLING DEVICE.The previously covered wires,one white and one coloredred to distinguish them inwiring, are wound togetherand drawn over the conicaltake-up wheel, as shown inthe right-hand section, withseveral friction turns to regu-late the twist rate. Take-up Wheel 396. ELECTRIC…
