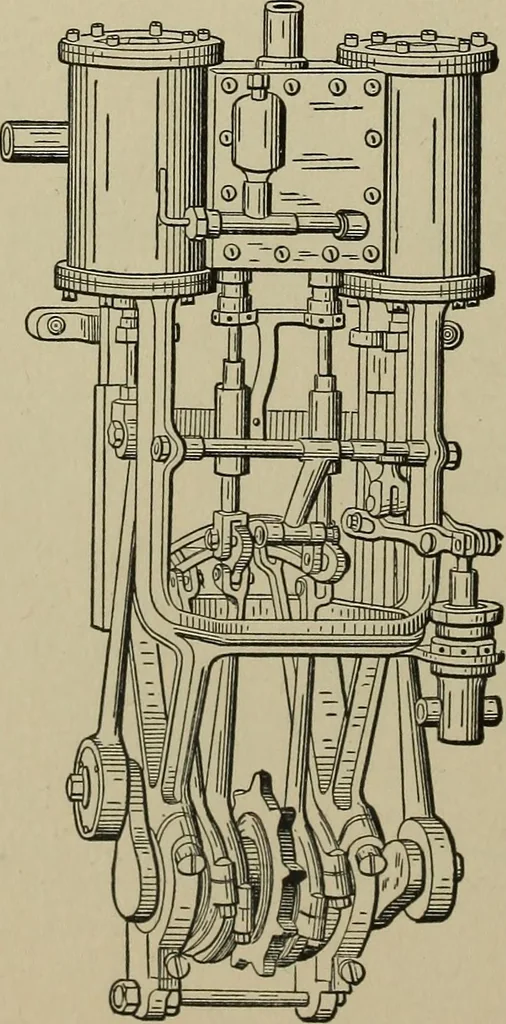

547. AUTOMOBILE STEAM EN-GINE. A two-cylinder engine of thelocomotive type with link motion and Dvalves ; cylinders 2 J x 4 inches. Boilerpump operated by a lever and link froma crosshead of one of the cylinders.Extreme cut-off o to f. The sprocket wheel on the shaft be-tween the eccentrics…
