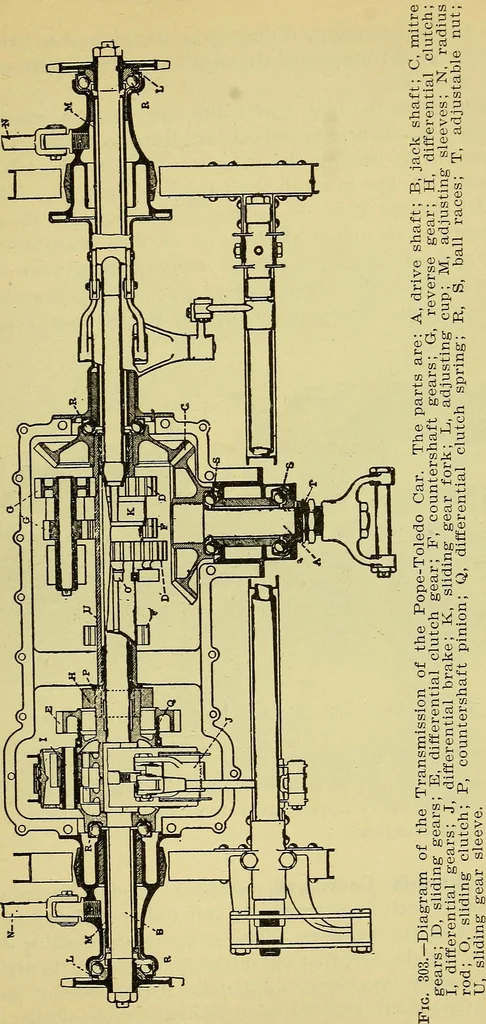

utch spring plate; O, ball thrustcollar; P, crank shaft; Q, fly-wheel stud; R, fly-wheel stud nut. with gear, F, on the countershaft, and power is transmittedthrough the shaft and pinion, P, which is in mesh with gear, E.The ratio of this gear system is 8 to i. On the intermediatespeed, sliding… … 398 SBLF-PROPBLLED VBHICLBS. is 5 to I. In reversing, sliding gear, D, is meshed with pinion,G, and power is transmitted through the reverse shaft and pinion,G, and gear, F. In driving on the high speed, the only gears in mesh betweenthe motor and the driving wheels are the bevel gears, C. This…
