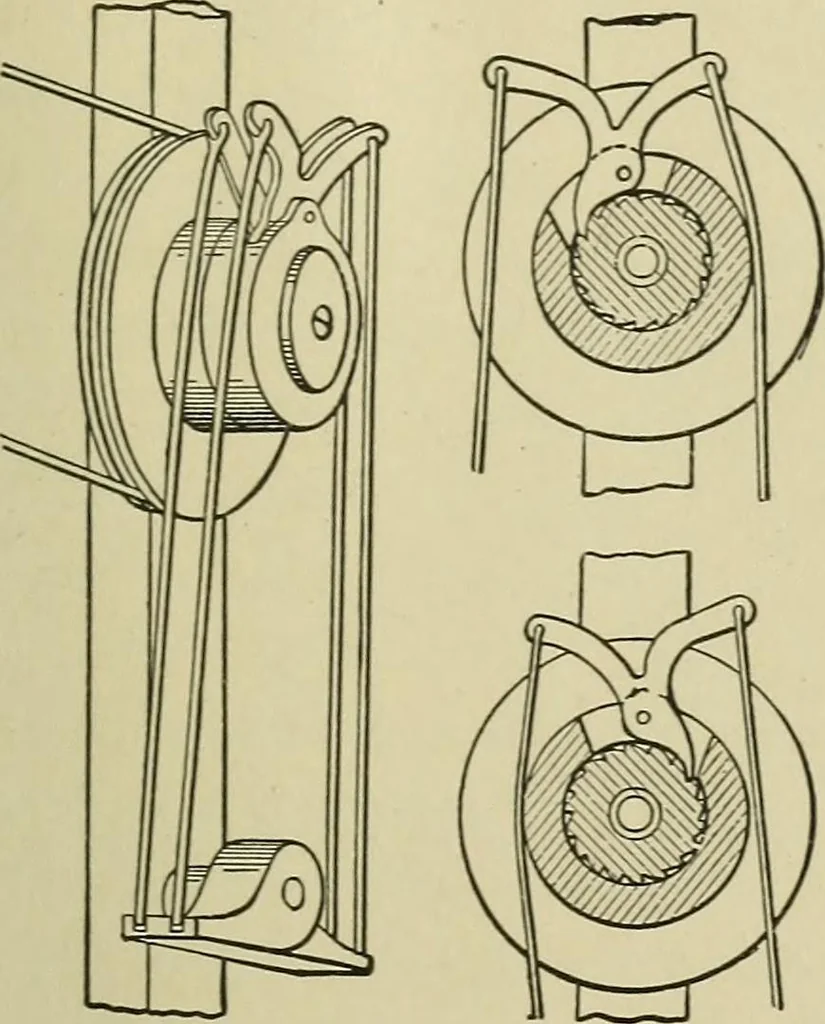

MOTION AND CONTROLLING DEVICES, ETC. 255 … 671.672. 670. SWING MOTOR. A wheelhas a hub with two sets of ratchet teethstanding in opposite directions, asshown, collars fitting loosely on the hubover the ratchet teeth, and pawls ful-crumed on the collars to engage theteeth, while a lever mounted to swingon a stud is connected by belts to…
