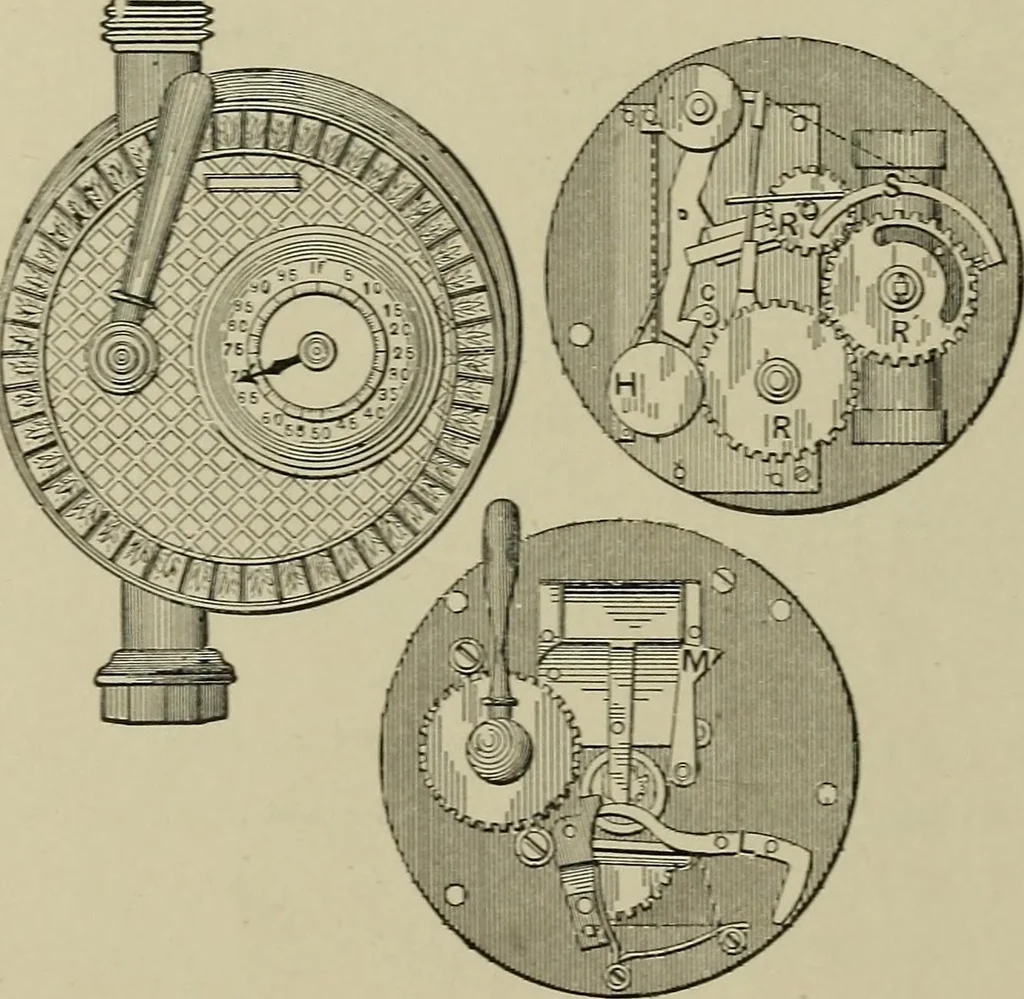

the lever L, and by depressing it locks the outside handle to the plug of the gascock. The opening ofthe cock by the handlesets a springand windsup a small clock move-ment, setting it in mo-tion. A small cam, C, is set 111 motion againstthe lever D, and re-leases the weight H,which has been… … 676.677. B --- — _ T ^_ 678. SPIRAL FLUTING LATHE. The baluster is fed endwaysagainst a lateral tool, being rotated on its axis at such a rate as shall im-part the number of turns or part of aturn to the foot in length. Of thiskind is A, in which the piece a to becut is moved longitudinally…
