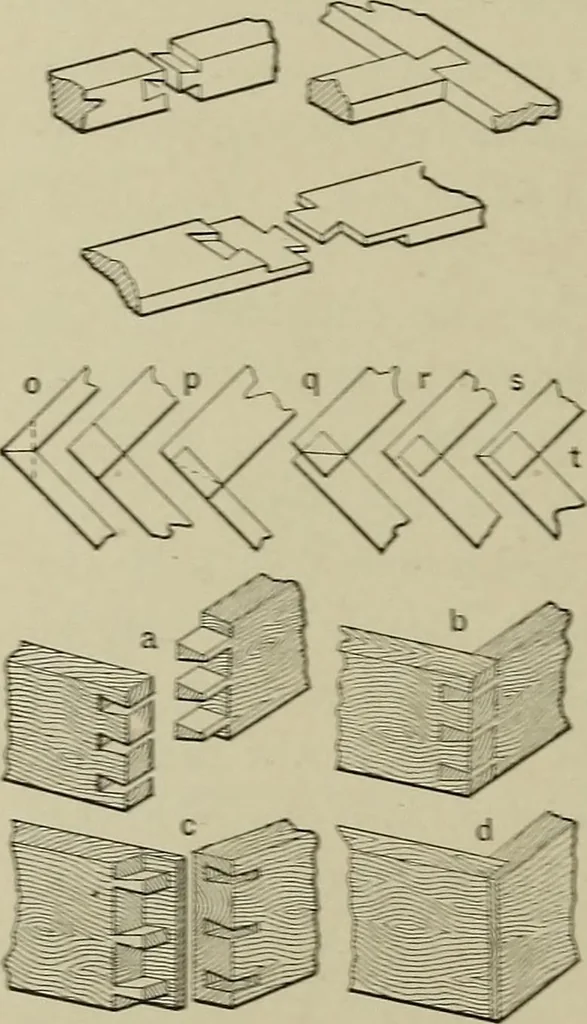

::jl mili and factory appliances and tools, etc. S02. DOVETAIL: … The three upper figures show the method ofend splicing by dovetails. The series of illustrations show the sev-eral modes of dovetailing the edges ofboxes and drawers. o is a miter and key joint. />. the common dovetail joint. q, the half-lap dovetail. r, the secret dovetail. s, the lap dovetail.…
