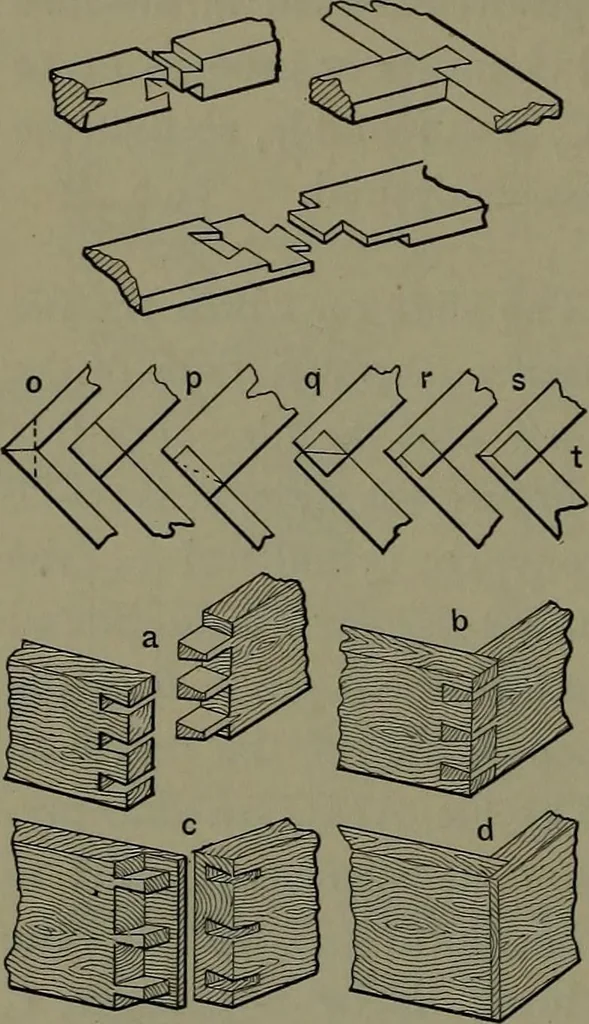

304 MILI, AND FACTORY APPLIANCES AND TOOLS, ETC. 802. DOVETAILS. … The three upper figures show the method ofend sphcing by dovetails. The series of illustrations show the sev-eral modes of dovetailing the edges ofboxes and drawers. 0 is a miter and key joint. p, the common dovetail joint. g, the halj-lap dovetail. r, the secret dovetail. s, the lap dovetail. /,…
