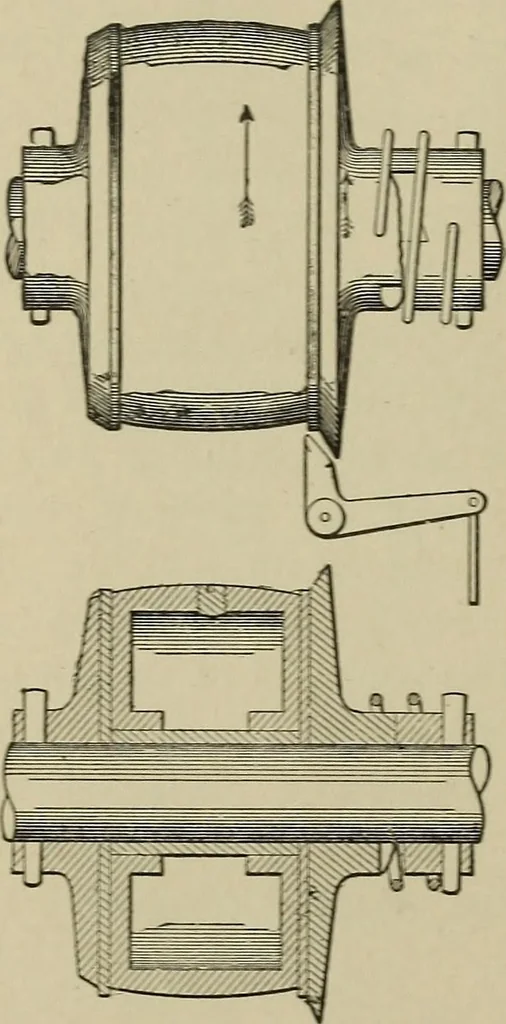

flangeturns on the shaft it is forced against therunning pulley and is then turned by thefriction until the pulley is clamped fastbetween the two friction surfaces, whenthe pulley, flanges, and shaft all rotate to-gether. To release the pulley, the brake—shown just below the right-hand fric-tion… … 24- A section showing the details of construction.
