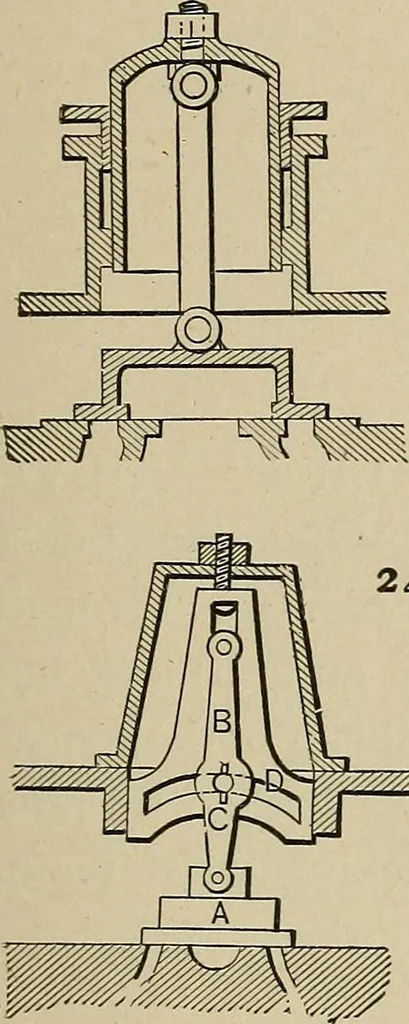

245. STEAM ENGINEVALVE CHEST.—Double ported exhaust; shortensthe steam passages. ErieCity Iron Works model. … 246. BALANCED SLIDE VALVE.—A bell-shaped piston, riding in a packed gland in thesteam chest cover, is connected to the top of thevalve by a link. 247. BALANCED SLIDE VALVE, Buchanan & Richters patent. The arm B carries a roller in the curved slot of the supporting piece D. The V///////^.…
