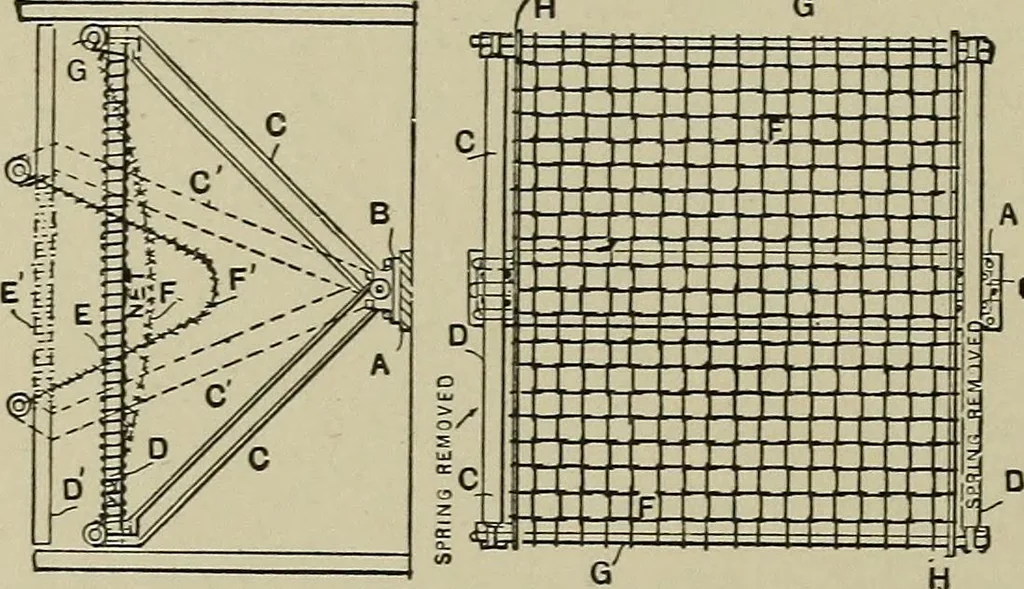

w blocks, B, which11-8 are bolted to a stout plank, A,which is securely fastened tothe bottom of the shaft. Thenet is held taut by a large com-pression spring, E, acting at theupper ends of the strut arms C. The spring, E, is supported and heldin place by pieces of large pipe, D, it being also free… … 894. REMINGTON TYPEWRITER. Vertical transverse sec-tion of the No. 3 machine, showing the arrangement of the keys, key levers, and connections.In the upper part ofthe main frame of themachine is arranged aring to which areclamped loops in whichare pivoted the typearms. There are inthese machines as…
