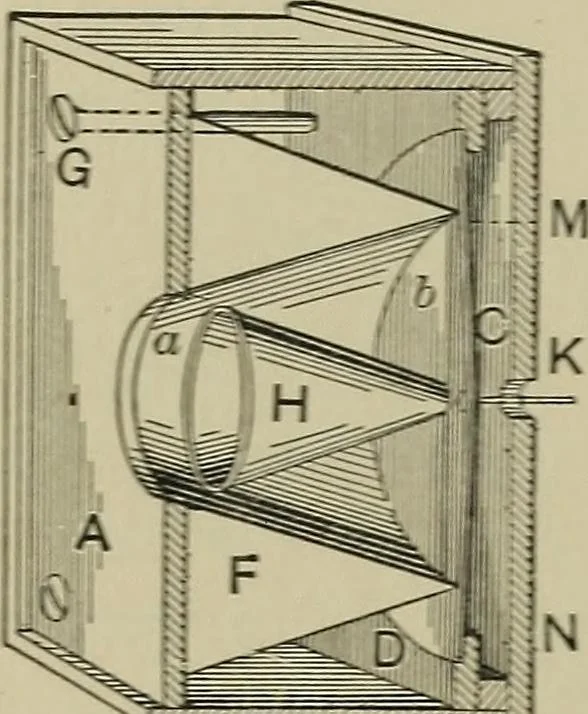

nel-shaped vessel, H, held in place bywires, ab, at the top and bottom, which hold the lower end of thefunnel a short distance from the diaphragm. A button is fastened tothe middle of the diaphragm, to which is fastened the wire, K. Thefunnel concentrates the sound waves and guides them to the… … 36. ACOUSTIC TELEPHONE. The characteristics of this tele-phone are a curvedmouthpiece, D, a vi-brating chamber, I,with an ear tube, T.for returning the vi-brations to the earwithout moving thehead in conversation.It also has attached aclock-gear vibrator,which makes a loudcall by the hammerstrokes…
