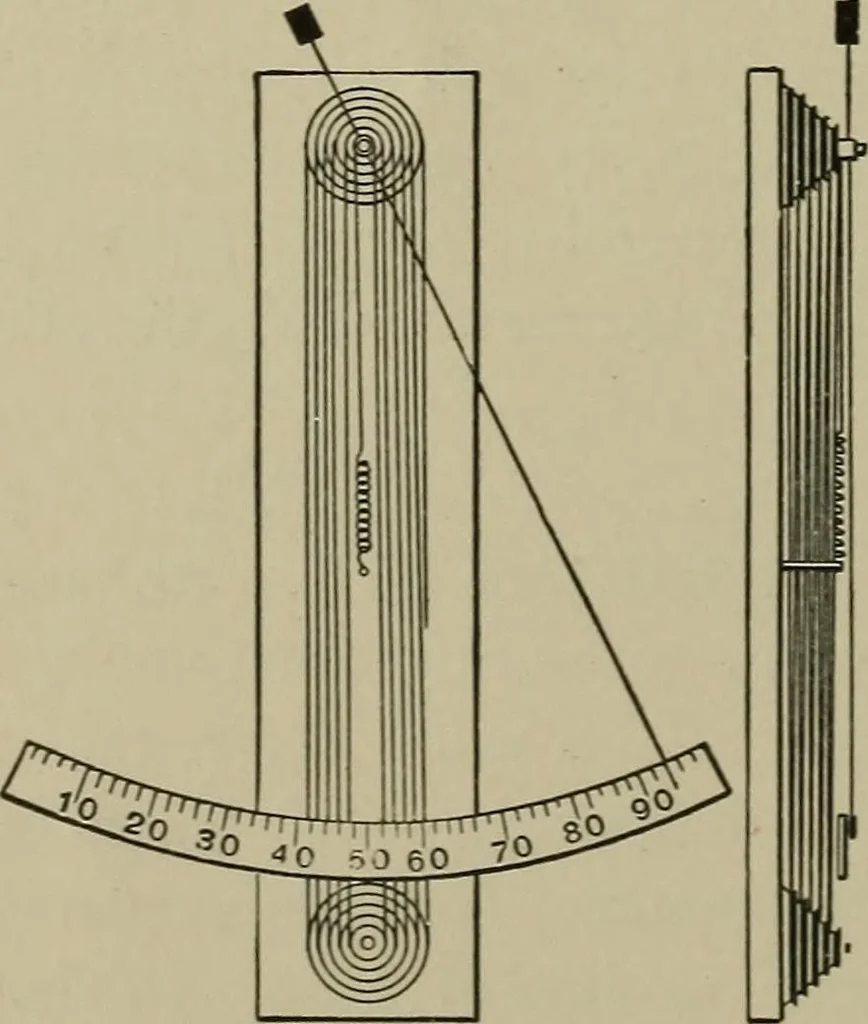

, which is strong enough tokeep the wire taut without stretchingit. The other end of the spring isattached to a stud projecting fromthe board. The pulleys are of dif-ferent diameters, so that each seriesforms a cone. By this constructionthe wire of one convolution is pre-vented from covering the… … MEASUREMENT OF POWER, SPRINGS. 37 42. WIND FORCE REGISTER. The metal drum, a a, is madeof tin plate ; it is two feet in height and one foot in diameter, suspended by a chain, by to a strong support, c, onthe roof of the Observatory; its lowerend is connected by a chain and guiderod, d, with a…
