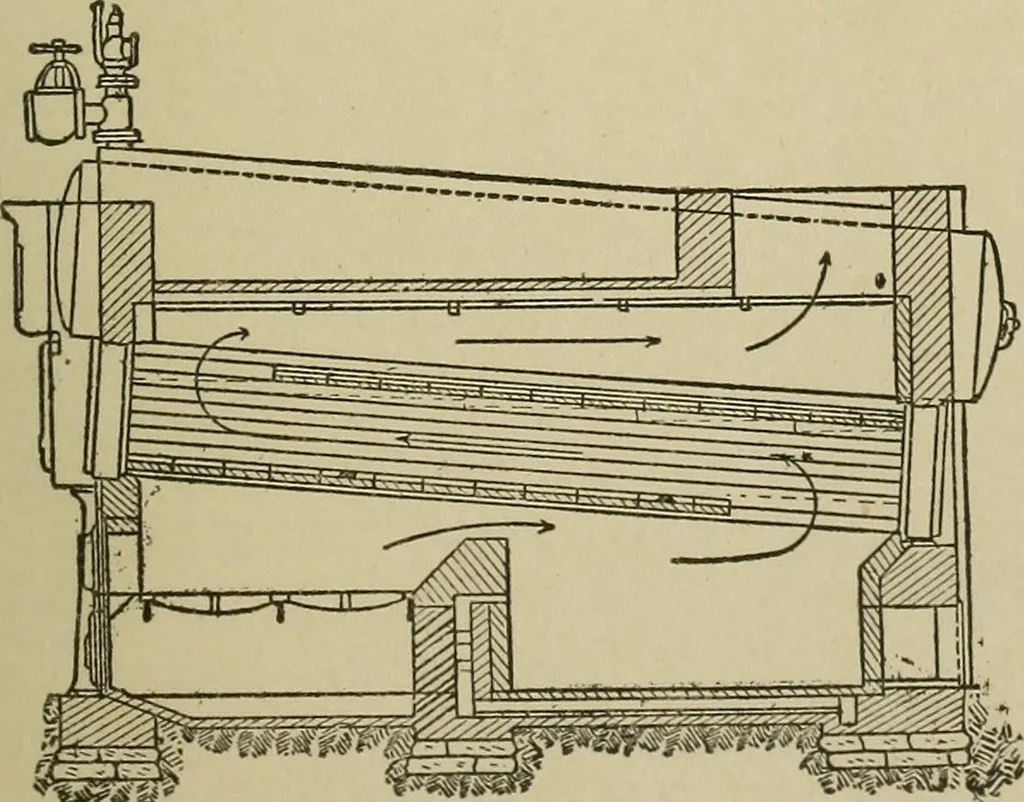

A liberal steam space and dry pipe prevents siphoning.74. Cross section of boiler.Continental type. … 75. HEAT CIRCU-LATION in a Hem boiler.The two longitudinal fire-brick partitions along theupper and lower tubes di-rect the heated gases in contact withtube surface. the entire r%&?$$i 53 54 GENERATION OF POWER, STEAM. 76. DOWN DRAUGHTBOILER FURNACE. Hawley type under a Heinboiler, c, tubular…
