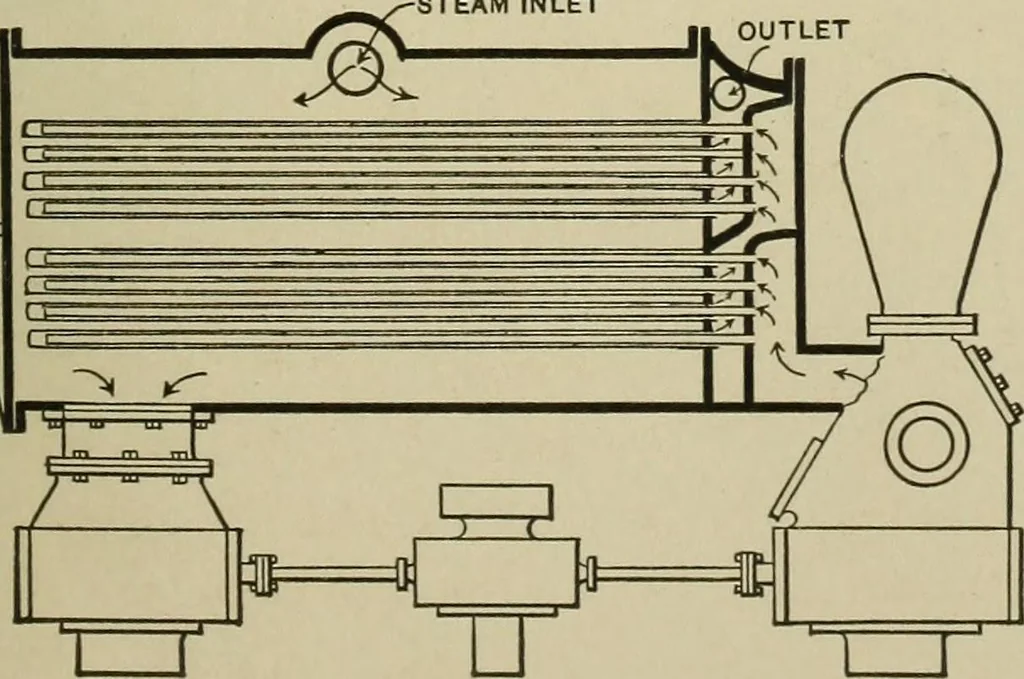

theexhaust pipe. The feed pump takes the hot water from the reservoirat a point near the bottom, thus avoiding any oil that might be presentat the surface. 135. SURFACE CONDENSER. Double tube type in whichthe shell has both tube heads at one end ; the cooling water flowing through the smaller ■… … 7o GENERATION OF POWER, STEAM. 136. NOVEL SURFACE CONDENSER. A cylinder filledwith small tubes as shown in the section, 137. A spray jet of water
