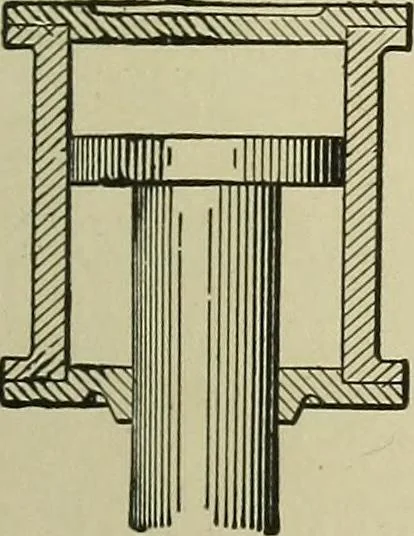

SECTION V. STEAM POWER APPLIANCES. ?» Section V. STEAM POWER APPLIANCES. … 139. TYPES OF COMPOUND ENGINES. Single cylinder or trunk engine in which the highand low pressure areas are adjusted by the size ofthe piston rod or trunk, which is inclosed by a stuffingbox. The connecting rod is jointed within the trunk.
