Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices"; (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing company · leaf 78

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 78

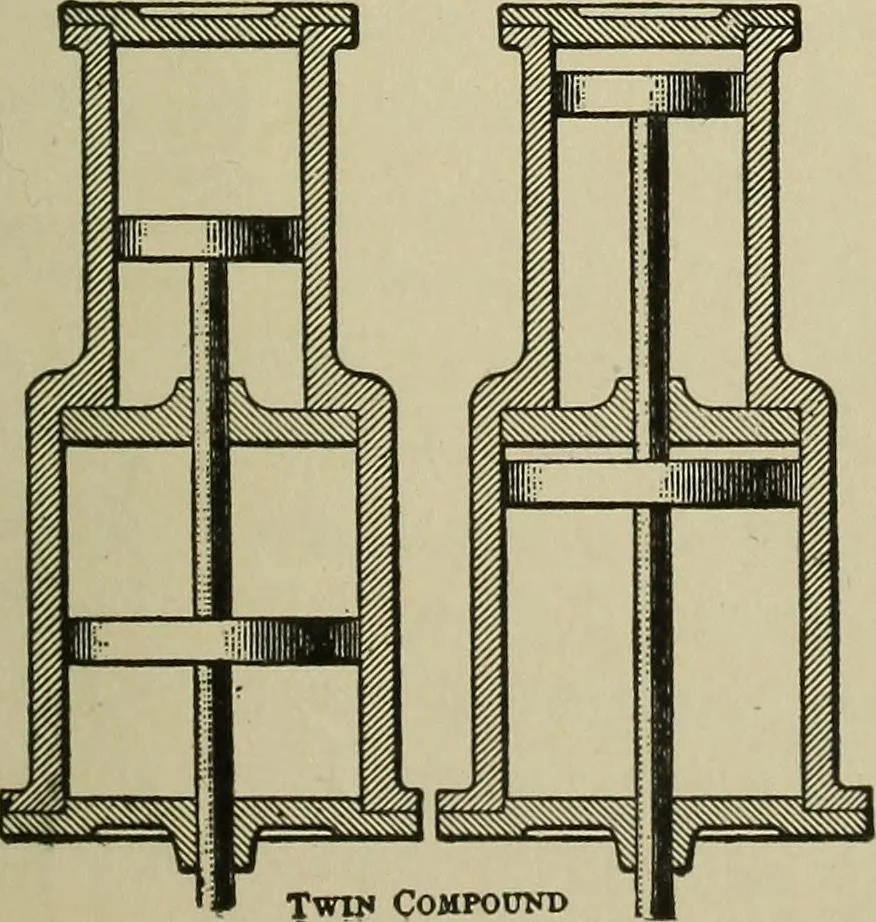

140. TYPES OF COMPOUNDENGINES. Cross compound withcranks at 1200 on ends of shaft. Flywheel in center. In this type there isno dead center. 141. Low-pressure cylinder, showingrelative positions of piston. … 142. TYPES OF COMPOUNDENGINES. Twin compound, closeconnected tandem with high-pressurecylinders forward, cranks at 1200 onends of shaft, fly wheel in center. 143. The relative positions of thepistons are shown in the two figuresat alternate strokes. 73 74 STEAM POWER AFPLIANCES.
