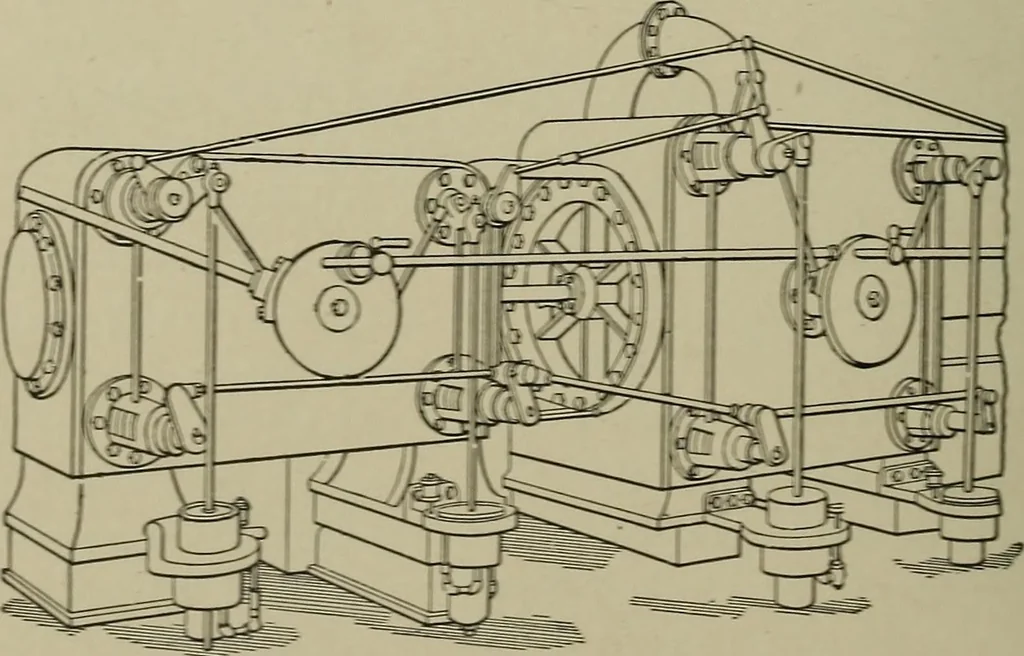

1 I ( 48 inches; crank positions. 120°; high-pressure cylinder, 23 inchesdiameter; intermediate cylinder, 51 inches diameter; low-pressurecylinder, 89 inches diameter. 15c. COMPOUND CORLISS ENGINE. Atlas type, withdirect connected exhaust valves for both high- and low-pressure … cylinder. The releasing gear of this type of engine is unique in thatinertia, centrifugal force, and the force of gravity are used to operatethe grab hook. STEAM POWER APPLIANCES. 77 151. COMPOUND CORLISS
